Aruba JX954A IAP-207 802.11N_AC DUAL 2X2:2

Aruba Networks
Expected dispatch on : September 11 - 12
Part No JX954A

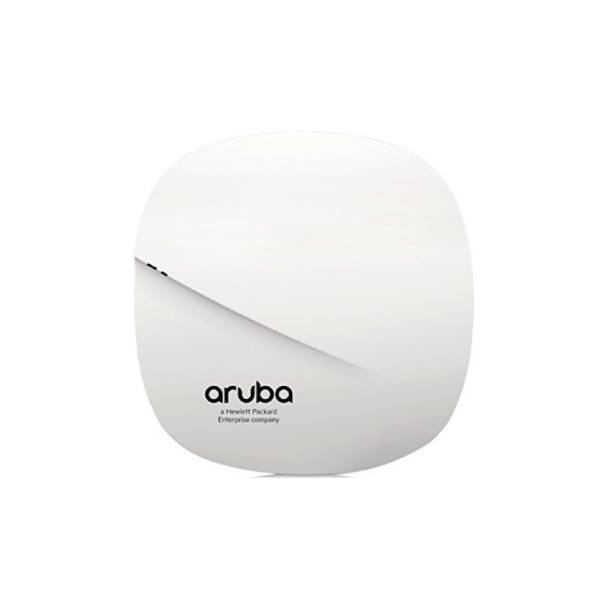

JX954A is the Aruba Instant IAP-207 (RW) 802.11n/ac 2×2:2 Dual Radio Integrated Antenna AP.

Aruba IAP is the standalone AP without controller.

Distributed, controllerless WLAN with Aruba Instant now.



Aruba JX954A IAP-207 802.11N_AC DUAL 2X2:2

The benefits of Aruba AP-207 include:

• Dual Radio 802.11ac Access Point

- Supports up to 867 Mbps in the 5GHz band (with 2SS/VHT80 clients) and up to 400 Mbps in the 2.4GHz band (with 2SS/VHT40 clients).

• Built-in Bluetooth Low-Energy (BLE) radio

- Enables location-based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time.

- Enables management of a network of Aruba Beacons.

• Advanced Cellular Coexistence (ACC) - Minimizes interference from 3G/4G cellular networks, distributed antenna systems and commercial small cell/femtocell equipment.

• Quality of Service for Unified Communication apps

- Supports priority handling and policy enforcement for unified communication apps, including Microsoft Skype for Business, with encrypted videoconferencing, voice, chat and desktop sharing.

• RF Management

- Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness, and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs.

- The Aruba 207 Series APs can be configured to provide part-time or dedicated air monitoring for wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.

 • Intelligent app visibility and control

- AppRF technology leverages deep packet inspection to classify and block, prioritize, or limit bandwidth for thousands of applications in a range of categories.

 • Security

- Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances.

  • IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats. - Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys.

Technical Specifications:


Aruba Instant IAP-207 (RW)

Wireless Protocol


Data Link Protocol

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n

Compliant Standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3az

Wi-Fi Bands

2.4 GHz, 5 GHz

Antenna Form Factor


Dimension (W × D × H)

5.9 in × 5.9 in × 1.6 in


13.4 oz


More Information

More Information
Part No JX954A
Country of Manufacture China
Brand Aruba Networks
Application Indoor
Antennas Internal
