ZKTECO IP-based Biometric Door Access Control Panel inBio160

ZKTeco
Expected dispatch on : 0March 29 - 30
Part No inBio160

InBio-series (inBio160)
IP-based Biometric Door Access Control Panel

Number of Inputs - 3(Exit Button and Door Status, 1 AUX) 2 (1-Form C Relay for Lock and One Form C Relay for Aux Output)

Quote

Details

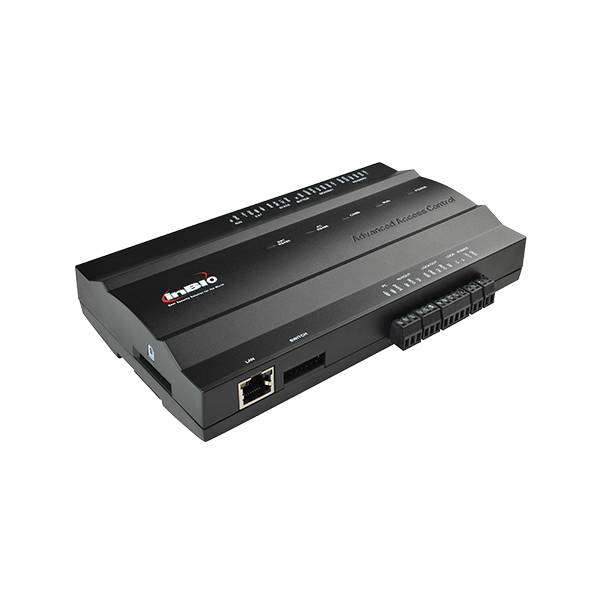

ZKTECO IP-based Biometric Door Access Control Panel inBio160

Truly Internal Biometric Identification
InBio carries out the matching of fingerprints on the panels. The FR Series of readers transmitfingerprint templates to InBio vis RS485 for fast and accurate matching with templates stored in the database. Wiegand inputs are also provided for traditional RFID readers.

Communicaiton
InBio controllers can be installed easily on your network and support both TCP/IP and RS-485 communication. Auto-discovery tool allows setting and modification of network parameters directly and easily.

Capacity
Support up to 3000 fingerprint templates, 30,000 badge users and store up to 100,000 events and transactions. Data is preserved if power is lost. Controller continues to operate if network connection is interrupted.

Lowest Total Cost of Ownership
Save cost. Controller firmwares can be upgraded without any advanced tools. New features can extend and expand the value of your investment.

More than Door Control
Access additional control and interface. After programming, auxiliary relays can be functioned as lights, alarms and intrusion detection panels. Extra locking devices or gate controllers can be accessed.

Options
InBio controllers come in 3 sizes to suit project needs and reduce the cost of unused capacity. 1-door, 2-door, and 4-door models can be mixed and matched in an optimized

system architecture.
Advanced Access Control Built-In Anti-Passback, First-Card Opening, Multi-Card
Opening, Duress Password Entry, and Auxilary input/output linkages are built into controller firmware.

For Software Developers
SDK is available for integrators and OEM’s to integrate the InBio controller
with their or existing security or personnel management applications. Upon request, ZK can customize InBio firmware to meet any customer requirements.


More Information


More Information
Part No inBio160
Dimensions Length (inch) 13.77
Dimensions Width (inch) 03.54
Dimensions Height (inch) 11.81
Country of Manufacture China
Brand ZKTeco
