Ubiquiti UniFi Access Point WiFi 6 Pro

Ubiquiti
Availability: In stock

Expected dispatch on : December 19 - 20
Part No U6-Pro

Indoor dual-band WiFi 6 access point capable of supporting over 300 clients with a aggregate throughput rate of 5.3 Gbps

Dual-band WiFi 6 (802.11ax)
5 GHz (4x4 MU-MIMO) band with a 4.8 Gbps throughput rate
2.4 GHz (2x2 MIMO) band with a 573.5 Mbps throughput rate
Operates at full 4x4 MIMO with 160 MHz bandwidth
300+ concurrent client capacity
Guest Traffic Isolation, which improves wireless network security and reduces traffic congestion

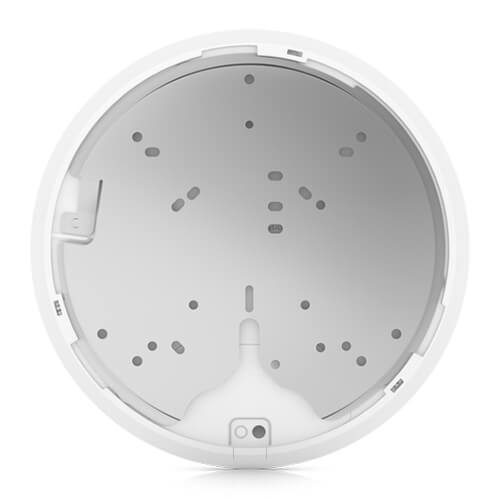

Including universal mounting plate, carrier plate and screw kit

Details


Ubiquiti UniFi Access Point WiFi 6 Pro

The Access Point WiFi 6 Pro (U6 Pro) is a powerful dual-band WiFi 6 access point ideal for home and office use. The U6 Pro can achieve an aggregate throughput rate of up to 5.3 Gbps with its 5 GHz (4x4 MIMO) and 2.4 GHz (2x2 MIMO) bands, allowing it to support over 300 simultaneously connected clients while maintaining a consistent, reliable Wi-Fi experience across your entire network. It can also isolate your guest traffic for optimal safety and speed. The U6 Pro also operates at full 4x4 MIMO with 160MHz channels to create high-capacity wireless uplinks and enable faster data transfer.

Mechanical

Dimensions : Ø197 x 35 mm (Ø7.76 x 1.38")
Weight : Without mount: 460 g (1.01 lb), With mount: 600 g (1.32 lb)
Enclosure material: Plastic
Mounting material : SGCC steel
Weatherproofing : IP54

Hardware

Management interfaces : Ethernet, Bluetooth
Networking interface : (1) GbE RJ45 port
Button : Factory reset
LEDs : White/Blue
Power method : 802.3at PoE+
Power supply : UniFi PoE switch, 48V, 0.5A PoE adapter (not included)
Supported voltage : range 44 to 57VDC
Max. power consumption : 13W
Max. TX power : 2.4 GHz: 22 dBm, 5 GHz: 26 dBm
MIMO : 2.4 GHz: 2 x 2 (UL MU-MIMO), 5 GHz: 4 x 4 (DL/UL MU-MIMO)
Throughput rate : 2.4 GHz: 573.5 Mbps, 5 GHz: 4.8 Gbps
Antenna gain : 2.4 GHz: 4 dBi, 5 GHz: 6 dBi
Mounting : Wall/ceiling (included)
Operating temperature : -30 to 60° C (-22 to 140° F)
Operating humidity : 5 - 95% noncondensing
Certifications : CE, FCC, IC

Software

WiFi standards : 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6
Wireless security : WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
BSSID : 8 per radio
VLAN : 802.1Q
Advanced QoS : Per-user rate limiting
Guest traffic isolation : Supported
Concurrent clients : 300+

Supported Data Rates

802.11a : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b : 1, 2, 5.5, 11 Mbps
802.11g : 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n (WiFi 4) : 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac (WiFi 5) : 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6) : 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)


More Information


More Information
Part No U6-Pro
GTIN-/EAN-Code 0810010074256
UPC 810010074256
Country of Manufacture China
Brand Ubiquiti
