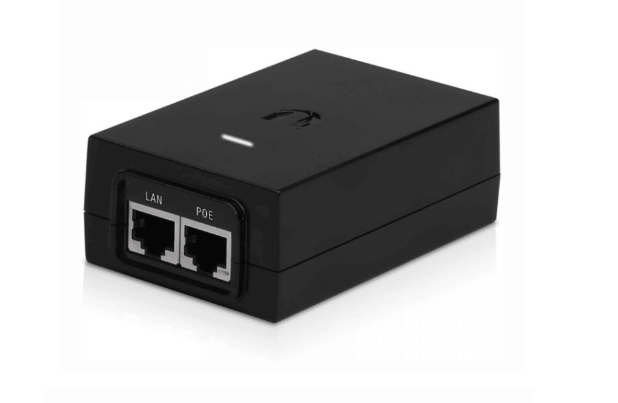

Ubiquiti POE-24-24W-G Power over Ethernet Adapters

Ubiquiti
Expected dispatch on : 0March 30 - 31
Part No POE-24-24W-G

UBNT POE-24-24W-G, PoE Injector, 24V 24W, EU

Ubiquiti Gigabit PoE adapter (24V, 24W). It is a gigabit PoE adapter designed to supply equipment powered by 24V up to1A. Features earth grounding/ESD protection, power LED, and remote reset capability.Compatible with RouterBoard, Alix etc.Ideal for powering client stations CPE and base stations. The adapter has LED indicating power supply.

Quote

Details


Ubiquiti POE-24-24W-G Power over Ethernet Adapters

Output Voltage: 24VDC @1.0A
Input Voltage: 90-260VAC @47-63Hz
Input Current: 0.3A @120VAC, 0.2A @230VAC
Inrush Current: <15A peak @120VAC, <30A peak
Efficiency: 70+%
Output Ripple: 1% Max
Switching Frequency: 200kHz
Line Regulation: +/- 0.5%
Load Regulation: +/- 1%
Operating Temperature: -10C to +60 deg C
Storage Temperature: -20°C to +85°C
Operating Humidity: -10°C to +60°C
Size (LXWXH): 85 x 55 x 33 mm
Weight: 4 oz
AC Connector: IEC-320 C6
Data IN / POE: RJ45 Shielded Socket
80% Current Indicator: Power LED will change color
Surge Protection: Common Mode
Clamping Protection: 11V Data, 77.5V Power
Max Surge Discharge: 1200A (8/20uS) Power
Peak Pulse Current: 36A (10/1000uS Data)
Shunt Capacitance: <5pF data
Response Time: <1nS
Compliance: UL, EN55022 (CISPR22) class B, Meets CE
