Ubiquiti Networks UniFi Switch 16 XG

10G Aggregation Switch for Enterprise Networks

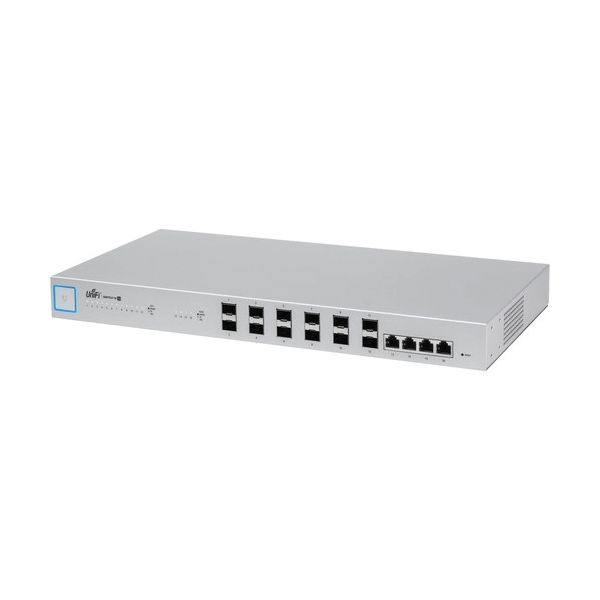

Build and expand your network with Ubiquiti Networks^® UniFi^® Switch 16 XG, part of the UniFi Enterprise System. The US‑16‑XG is a fully managed, 16‑port, 10G fiber switch that enhances network capacity by providing high‑bandwidth aggregation connectivity to multiple switches in your network.

10 Gbps Deployment Example

Supports 12 x US-48, 10 Gbps symmetric (40 Gbps aggregate) uplink/downlink and 4 x 10 Gbps Ethernet for uplink to another US-16-XG or core server.

20 Gbps Deployment Example

Supports 6x US-48, 20 Gbps symmetric (40 Gbps aggregate) uplink/downlink and 4 x 10 Gbps Ethernet for uplink to another US-16-XG or core server.

Multi-Site Management

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

0G High-Capacity Links

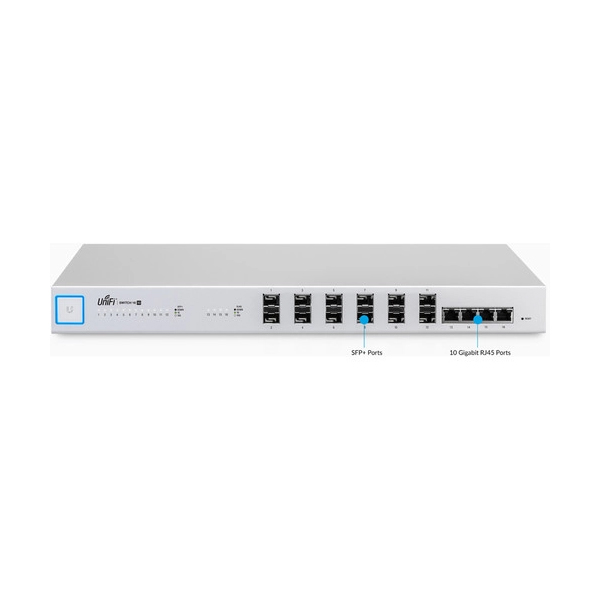

The US‑16‑XG offers maximum performance and low latency as an aggregation switch. For fiber connectivity, it features 12 SFP+ ports. For CAT 6/5e cable connectivity, the US‑16‑XG offers four 10G RJ45 ports.
