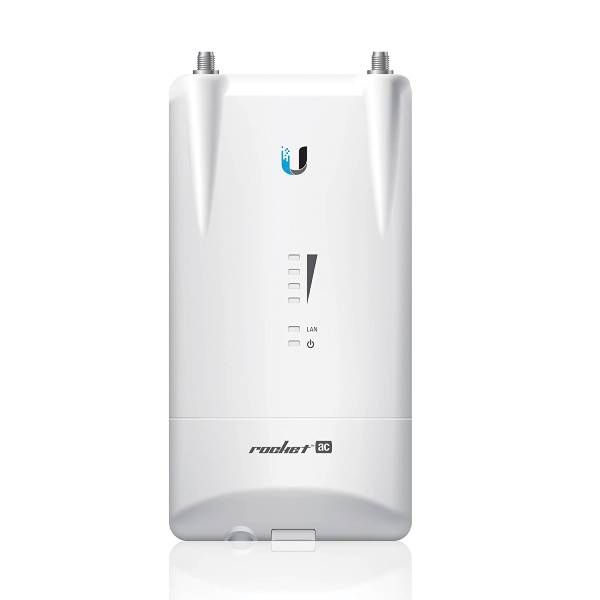

UBIQUITI NETWORKS R5AC-LITE US Ubiquiti R5AC-Lite Version Rocket5ac Lite Full-Band 5GHz ROCKET 5AC LITE

Ubiquiti
Expected dispatch on : May 24 - 25
Part No ROCKET 5AC LITE

Ubiquiti Networks has designed the first airMAX® ac radios for high performance and ease of installation. You have the freedom to deploy the Rocket® ac anywhere in the world, and it allows for a high degree of flexibility in configuring channel bandwidths (subject to local country regulations). Pair the Rocket5ac Lite with airMAX ac antennas for optimal performance:

    • PtP backhaul Rocket5ac Lite with the RocketDish™ ac
    • PtMP links Rocket5ac Lite with the airMAX ac Sector
Quote

Details


UBIQUITI NETWORKS R5AC-LITE US Ubiquiti R5AC-Lite Version Rocket5ac Lite Full-Band 5GHz ROCKET 5AC LITE

The R5AC-Lite is a Ubiquiti Networks Rocket Basestation with 2x2 MIMO, passive 24V PoE, and 802.11ac. Rocket 5AC-Lite has a throughput of up to 500+ Mbps. Featuring proprietary airMAX ac technology, the Rocket 5ac Lite is ideal for deployment in Point-to-Point (PtP) bridging applications requiring maximum performance. Point-to-MultiPoint (PtMP) functionality will be added via a future firmware upgrade. The new ac technology offers improved latency, noise immunity, scalability and significantly increases throughput performance. The Rocket5ac Lite radio can be paired with a RocketDish antenna (SKU: RD-5G31) to create the endpoint of a high-performance, Point-to-Point (PtP) backhaul. Product Includes: (1) Rocket 5AC-Lite (1) Gigabit PoE Adapter (24V, 0.5A) (1) Power Cord (1) Quick Start Guide Product Specifications Dimensions: 162 x 84 x 37mm (6.38 x 3.31 x 1.46") Weight: 250g (8.81oz) Power Supply: 24V, 0.5A Gigabit PoE Adapter Power Method: Passive PoE (Pairs 4,5+;7,8 Return) Max. Power Consumption: 8.5W Operating Frequency: 5150 - 5875MHz Processor: Atheros MIPS 74Kc, 720MHz Memory: 128MB DDR2 SDRAM, 16MB NOR FLASH Networking Interface: (1) 10/100/1000 Mbps RF Connections: (2) RP-SMA (waterproof) LEDs: Power, LAN, (4) Signal Strength Channel Size: PtP Mode: 10/20/30/40/50/60/80MHz PtMP Mode: 10/20/30/40MHz Enclosure Characteristics: Outdoor UV Stabilized Plastic Supported Voltage Range: 20-26VDC ESD/EMP Protection: ±24kV Air / Contact Operating Temperature: -40 to 80°C (-40 to 176°F) Operating Humidity: 5 to 95% non-condensing Shock and Vibration: ETSI300-019-1.4 Wireless Approvals: FCC, IC, CE RoHS Compliance: Yes Modes:Access Point, Station Services: Web Server, SNMP, SSH Server, Telnet, Ping


More Information


More Information
Part No ROCKET 5AC LITE
Dimensions Length (inch) 6.38
Dimensions Width (inch) 3.31
Dimensions Height (inch) 1.46
Country of Manufacture China
Brand Ubiquiti
