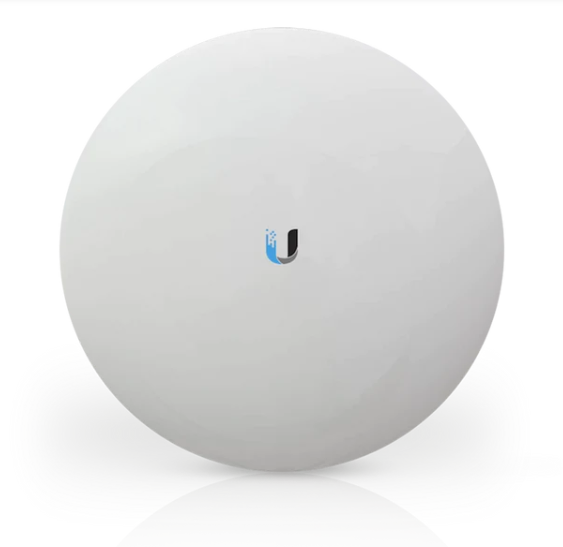

airMAX NanoBeam AC 5 GHz Bridge

Ubiquiti
Expected dispatch on : May 23 - 24
Part No NBE-5AC-Gen2-EU

Compact, UISP-ready, 5 GHz WiFi bridge with enhanced surge protection and an optimized radio and antenna.

The sleek NanoBeam design with proprietary airMAX ac chipset and dedicated management Wi-Fi for easy UISP mobile app support and fast setup. This airMAX ac CPE pivots on a ball joint for mounting and alignment flexibility.

AED 378.00
Inclusive of 5% VAT

Details


airMAX NanoBeam AC 5 GHz Bridge

Dimensions (Mount Included): 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")
Weight (Mount Included) 530 g: (1.17 lb)
Gain: 19 dBi
Networking Interface: (2) 10/100/1000 Ethernet Port, Wi-Fi for Management
Enclosure :Outdoor UV Stabilized Plastic
Max. Power Consumption :8.5W
Power Supply: 24V, 0.5A Gigabit PoE Adapter (Included)
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Wind Loading: 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)
Wind Survivability: 200 km/h (125 mph)
Certifications :CE, FCC, IC
Mounting :Pole-Mount (Kit Included)
Wall-Mount :(Not Included)
ESD/EMP Protection: ± 24kV Contact/Air
Operating Temperature: -40 to 80° C (-40 to 176 F)
Operating Humidity: 5 to 95% Noncondensing
Salt Fog Test :IEC 68-2-11 (ASTM B117),
Equivalent: MIL-STD-810 G Method 509.5
Vibration Test :IEC 68-2-6
Temperature Shock Test :IEC 68-2-14
Processor Specs Atheros: MIPS 74Kc, 720 MHz
Memory: 128 MB DDR2, 8 MB Flash
LEDs: Power, Ethernet, (4) Signal Strength
Signal Strenght LEDs: Software-Adjustable to Correspond to Custom RSSI Levels
Max. VSWR: 1.5:1
Channel Sizes PtP Mode,PtMP Mode: 10/20/30/40/50/60/80 MHz, 10/20/30/40 MHz
Polarization: Dual Linear
RoHS Compliance: Yes
UV Test: IEC 68-2-5 at 40° C (104° F),
Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test: ETS 300 019-1-4,
Equivalent: MIL-STD-810 G Method 506.5


More Information


More Information
Part No NBE-5AC-Gen2-EU
UPC 810354026324
Brand Ubiquiti
