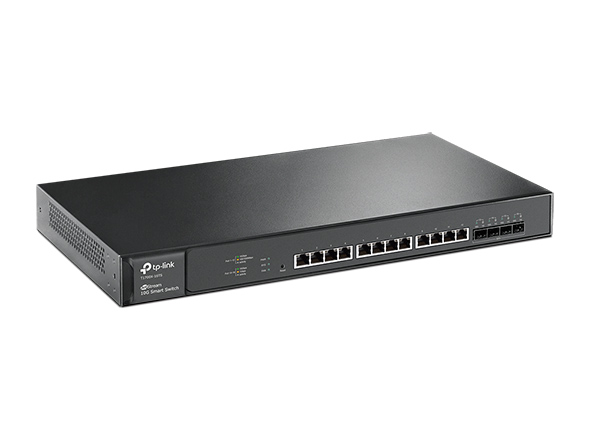

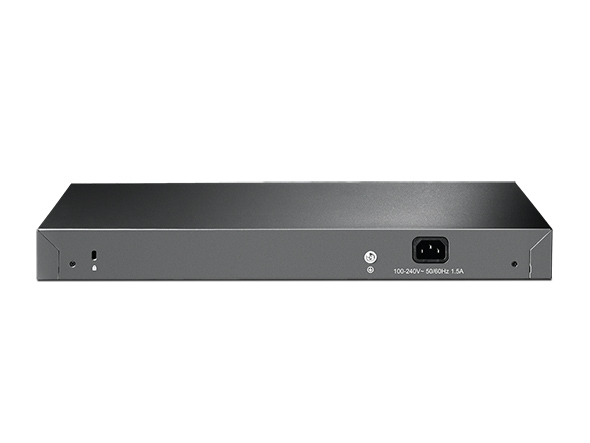

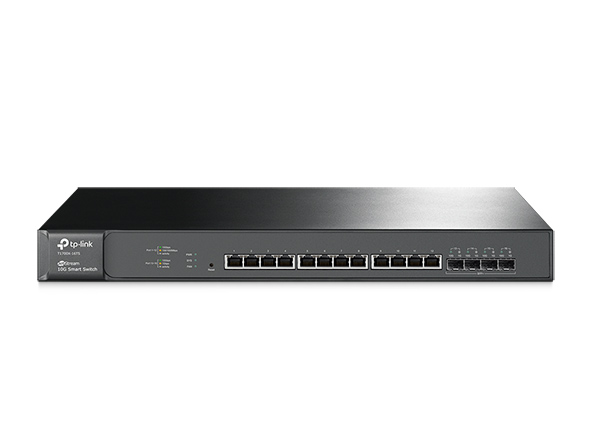

TP-Link JetStream 12-Port 10GBase-T Smart Network Switch with 4 10G SFP+ Slots T1700X-16TS TP-Link-T1700X-16TS

Expected dispatch on : 1July 18 - 19
Part No TP-Link-T1700X-16TS

Designed for use in expanding enterprise environments, the T1700X-16TS JetStream 12-Port Gigabit Stackable Smart Switch with 4 10G SFP+ Slots from TP-Link this switch provides increased scalability, higher bandwidth, and enhanced performance. With 12 gigabit Ethernet ports and 4 10 gigabit SPF+ expansion slots network administrators can easily configure high-speed local-area storage networks complete with high-speed, uninterrupted data flows. Residing on Layer 2 of the network, this T1700 Series switch supports a variety of networking features including static routing, link aggregation, 802.1Q/MAC/protocol VLAN, IGMP snooping, and much more. Administrators can also regulate bandwidth using enhanced Quality of Service (QoS) support with 8 priority queues, 802.1P/DSCP QoS, rate limiting, and voice VLAN to ensure specific tasks receive the bandwidth needed to function properly. TP-Link has even provided dual-image firmware support within this switch to reduce downtime when downloading and configuring device updates.




TP-Link JetStream 12-Port 10GBase-T Smart Network Switch with 4 10G SFP+ Slots T1700X-16TS TP-Link-T1700X-16TS


10-Gigabit Switching Solution
This TP-Link T1700 Series 10G Smart Switch features a 10G uplink which provides high levels of performance, scalability, and cost-effectiveness that SMBs require from their 10G networking solutions.


L2 + Static Routing

Simple network segmentation, with internal routing through the switch, allows devices in different VLANs/subnets to communicate with each other and makes the flow of network traffic more efficient.


Abundant L2 Features

This T1700 Series device comes equipped with a full lineup of L2 features that meet your current and future needs for unified networking and mobility.
• 802.1Q/MAC/Protocol/Private VLAN
• Link Aggregation Group (LAG)
• IGMP & MLD Snooping
• Multicast VLAN


Security Strategies

Support for numerous security strategies allow you to create a secure, unified network by preventing unauthorized access, external attacks, and malware infiltration.
• Access Control List (ACL)
• DHCP Snooping
• 802.1x Authentication
• IP-MAC-Port Binding


QoS Features

Advanced controls provide optimized network performance and efficient delivery of time-sensitive traffic.
• Port-Based or 802.1p-Based Prioritization
• Layer 3-Based (DSCP) Prioritization
• Rate Limit
• Voice VLAN


IPv6 Support

The T1700 Series offers comprehensive IPv6 features, including IPv6 management, Static Routing, ACL, and QoS2, which ease the transition to an IPv6-based network and protect the value of your investment.


Dual-Image Firmware

Dual-image firmware reduces downtime when the firmware is being updated. The backup image will also be activated in the event that any error occurs on the active image.

More Information

More Information
Part No TP-Link-T1700X-16TS
Country of Manufacture China
Brand TP-Link
Switches Non PoE
Port Count 11 to 18
Throughput up to 238.1Mpps
Switching Capacity 320 Gbps
Network Ports 12 x 1G
Uplink Ports 4 x 10G SFP+
Power Supply External
