HPE JL380A OfficeConnect 1920S 8G Switch
December 06 - 07
The HPE OfficeConnect 1920S Switch Series consists of advanced smart-managed fixed‑configuration Gigabit switches designed for small businesses in an easy-to-administer solution.
Features:
- Customized operation using intuitive Web interface
- Layer 3 static routing with 32 routes for network segmentation and expansion
- Access control lists for granular security control
- Spanning Tree Protocol: STP, RSTP, and MSTP
- 8-, 24- and 48-port non-PoE+ models are fanless for quiet operation
- HPE Limited Lifetime Warranty
Details

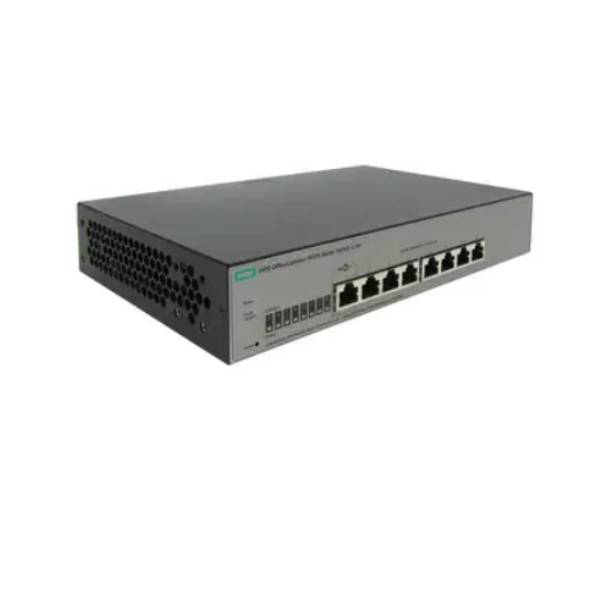

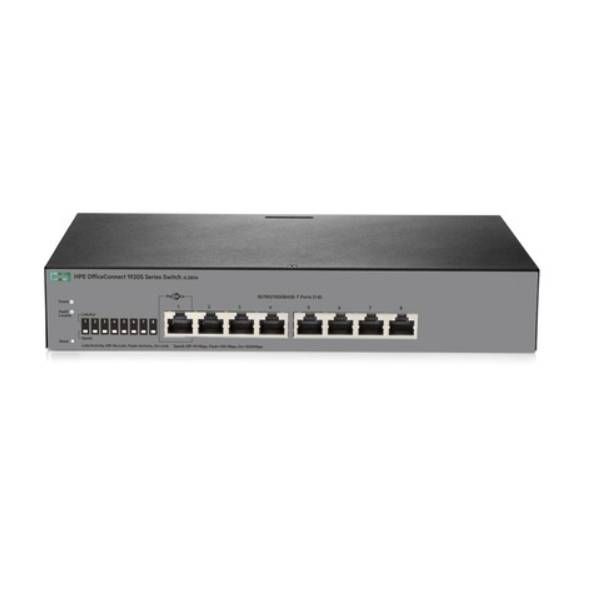

HPE JL380A OfficeConnect 1920S 8G Switch
The HPE OfficeConnect 1920S Switch Series consists of advanced smart-managed fixed‑configuration Gigabit switches designed for small businesses in an easy-to-administer solution.
All HPE OfficeConnect 1920S Switches support flexible installation options, including mounting on wall, under table, or on desktop. The 8-port Gigabit Ethernet model can be powered by an upstream Power over Ethernet switch for environments where no line power is available. The series is part of the OfficeConnect portfolio of Hewlett Packard Enterprise small business networking products.
These switches provide a great value, and includes features to satisfy even the most advanced small business networks. Customizable features include basic Layer 2 features like VLANs and link aggregation, as well as advanced features such as Layer 3 static routing, IPv4 and IPv6 Host mode, ACLs, and Spanning Tree Protocols.
HPE OfficeConnect 1920S Switch Series includes a Limited Lifetime Warranty. This warranty provides advance hardware replacement with next business day shipment in most countries, limited 24x7 telephone support available from HPE for the first 90 days, and limited electronic and business hours telephone support is available from HPE for the entire warranty period
Technical Specifications:
Product Name | HPE OfficeConnect 1920S-8G Switch Managed |
Manufacturer Part Number | JL380A |
Product Line | OfficeConnect |
Product Series | 1920S |
Product Model | 1920S 8G |
Product Type | Ethernet Switch |
Interfaces/Ports | |
Total Number of Network Ports | 8 |
Uplink Port | No |
Modular | No |
Stack Port | No |
Port / Expansion Slot Details | 8 x Gigabit Ethernet Network |
Media & Performance | |
Media Type Supported | Twisted Pair |
Ethernet Technology | Gigabit Ethernet |
Network Technology | 10/100/1000Base-TX |
Network & Communication | |
Layer Supported | 3 |
Power Description | |
Power Source | Power Supply |
Redundant Power Supply Supported | No |
Management & Protocols | |
Manageable | Yes |
Physical Characteristics | |
Compatible Rack Unit | 1U |
Form Factor | Rack-mountable Desktop |
Height | 1.7" |
Width | 10" |
Depth | 6.3" |
More Information
Part No | JL380A |
---|---|
Country of Manufacture | China |
Brand | Hewlett Packard Enterprise |
Switches | Non PoE |
Throughput | up to 11.9 Mpps |
Switching Capacity | 16 Gbps |
Network Ports | 8 x 1G |
