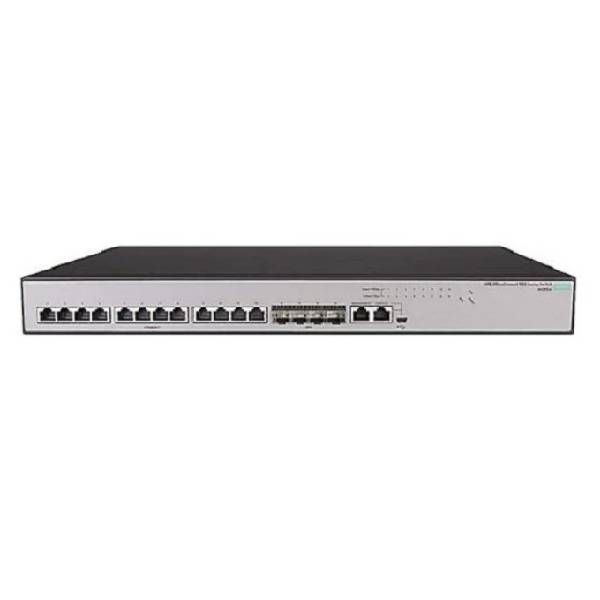

HPE JH295A 1950 12XGT 4SFP+ Switch
December 06 - 07
The HPE OfficeConnect 1950 Series is a smart Web-managed 10-Gigabit and Gigabit platform for advanced small business networks needing the highest performance now or in the future.
Features
- 10G Connectivity for fast network to servers and storage
- Combination of SFP+ and 10GBASE-T ports supports fiber and cost-effective copper connectivity
- True stacking allows for redundancy while simplifying administration
- Customized operation using intuitive Web interface
- Limited lifetime warranty
Details
HPE JH295A 1950 12XGT 4SFP+ Switch

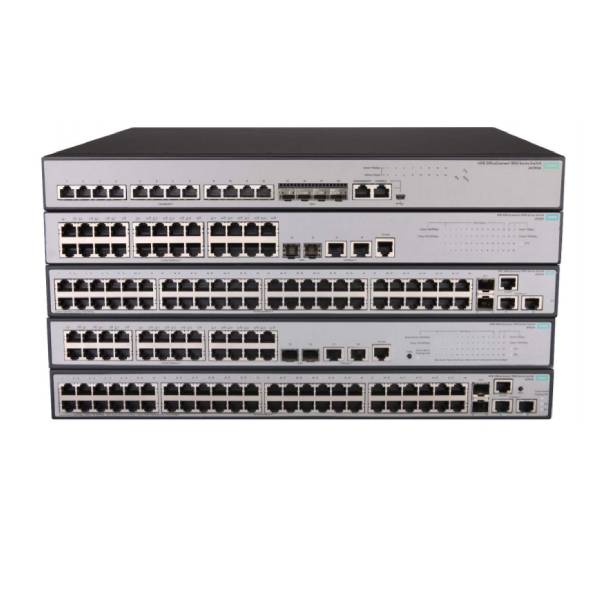

The HPE OfficeConnect 1950 Switch Series includes five switches: New to the series is a 16-port 10-Gigabit aggregation switch that has 12 10GBASE-T and 4 SFP+ ports, which is ideal as the core of a high performance workgroup or small business network.
The PoE+ models both have a PoE power budget of 370 W to power up PoE/PoE+ compliant client devices.
The HPE OfficeConnect 1950 Switch Series has an intuitive Web-based interface for simple customization of network operation. It supports true stacking—of two aggregation switches and separately of up to four access switches—with multiple units logically administered as a single entity, simplifying administration while supporting greater network redundancy. Models support both rack mounting and desktop operation.
Technical Specifications:
Product Name | 1950 12XGT 4SFP+ Switch |
Manufacturer Part Number | JH295A |
Product Line | OfficeConnect |
Product Series | 1950 |
Product Model | 1950 12XGT 4SFP+ |
Packaged Quantity | 1 |
Product Type | Layer 3 Switch |
Interfaces/Ports | |
Total Number of Network Ports | 12 |
Uplink Port | No |
Modular | Yes |
Stack Port | Yes |
Port / Expansion Slot Details | 12 x 10 Gigabit Ethernet Network 4 x 10 Gigabit Ethernet Expansion Slot |
I/O Expansions | |
Number of Total Expansion Slots | 4 |
Expansion Slot Type | SFP+ |
Number of SFP+ Slots | 4 |
Media & Performance | |
Media Type Supported | Twisted Pair Optical Fiber |
Ethernet Technology | 10 Gigabit Ethernet |
Network Technology | 10GBase-T 10GBase-X |
Network & Communication | |
Layer Supported | 3 |
Power Description | |
Power Source | Power Supply |
Redundant Power Supply Supported | No |
Management & Protocols | |
Manageable | Yes |
Physical Characteristics | |
Form Factor | Rack-mountable |
Height | 1.7" |
Width | 17.3" |
Depth | 6.3" |
More Information
Part No | JH295A |
---|---|
Country of Manufacture | China |
Brand | Hewlett Packard Enterprise |
Switches | Non PoE |
Port Count | 11 to 18 |
PoE Power | Data only |
Memory | 512 MB flash |
Throughput | up to 238.1Mpps |
Switching Capacity | 320 Gbps |
Network Ports | 12 x 1G |
Power Supply | Internal |
