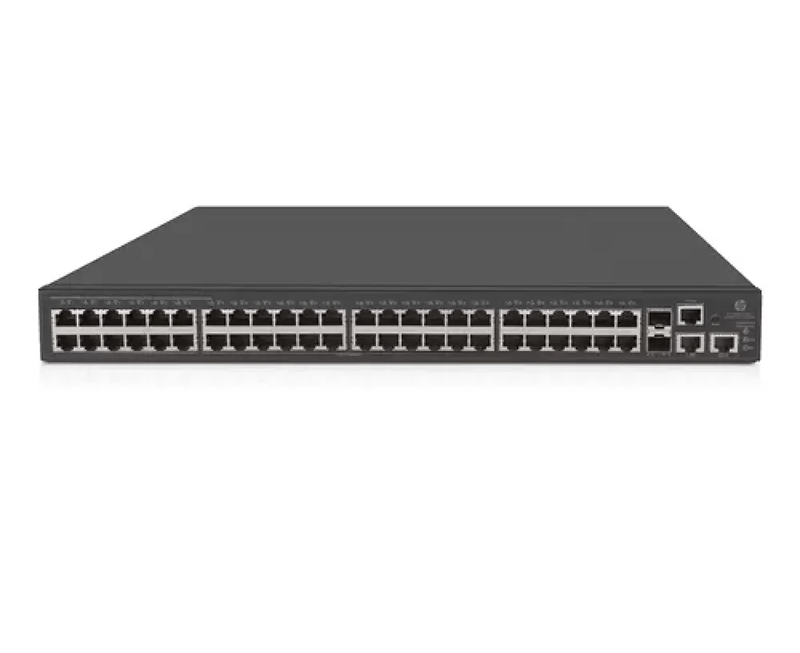

HPE JG963A 1950-48G-2SFP+-2XGT-POE+ Switch
November 06 - 07
The HPE OfficeConnect 1950 Series is a smart Web-managed 10-Gigabit and Gigabit platform for advanced small business networks needing the highest performance now or in the future.
Features
- 10G Connectivity for fast network to servers and storage
- Combination of SFP+ and 10GBASE-T ports supports fiber and cost-effective copper connectivity
- True stacking allows for redundancy while simplifying administration
- Customized operation using intuitive Web interface
- Limited lifetime warranty
Details
HPE JG963A 1950-48G-2SFP+-2XGT-POE+ Switch
The HPE OfficeConnect 1950 Switch Series includes five switches: New to the series is a 16-port 10-Gigabit aggregation switch that has 12 10GBASE-T and 4 SFP+ ports, which is ideal as the core of a high performance workgroup or small business network.nt client devices.
The HPE OfficeConnect 1950 Switch Series has an intuitive Web-based interface for simple customization of network operation. It supports true stacking—of two aggregation switches and separately of up to four access switches—with multiple units logically administered as a single entity, simplifying administration while supporting greater network redundancy. Models support both rack mounting and desktop operation. These switches have IPv4 and IPv6 operation, with Layer 2 switching as well as Layer 3 static routing.
Technical Specifications:
Product Name | HPE 1950-48G-2SFP+-2XGT-PoE+ Switch US EN |
Manufacturer Part Number | JG963A#ABA |
Product Series | 1950 |
Product Model | 1950-48G-2SFP+-2XGT- PoE+(370W) |
Product Type | Ethernet Switch |
Interfaces/Ports | |
Total Number of Network Ports | 50 |
Modular | No |
Port / Expansion Slot Details | 48 x Gigabit Ethernet Network 2 x 10 Gigabit Ethernet Network 2 x 10 Gigabit Ethernet Expansion Slot |
I/O Expansions | |
Number of Total Expansion Slots | 2 |
Expansion Slot Type | SFP+ |
Number of SFP+ Slots | 2 |
Media & Performance | |
Media Type Supported | Twisted Pair Optical Fiber |
Ethernet Technology | Gigabit Ethernet 10 Gigabit Ethernet |
Network Technology | 10/100Base-TX 10/100/1000Base-T 10GBase-T 10GBase-X |
Network & Communication | |
Layer Supported | 3 |
Power Description | |
Power Source | Power Supply |
Redundant Power Supply Supported | Yes |
Management & Protocols | |
Manageable | Yes |
Physical Characteristics | |
Compatible Rack Unit | 1U |
Form Factor | Rack-mountable |
Height | 1.7" |
Width | 17.3" |
Depth | 16.5" |
More Information
Part No | JG963A |
---|---|
Country of Manufacture | China |
Brand | Hewlett Packard Enterprise |
Switches | PoE |
Port Count | 29 to 52 |
PoE Power | 301 to 400 |
Memory | 128 MB |
Throughput | up to 130.95 Mpps |
Switching Capacity | 176 Gbps |
Network Ports | 48 x 1G |
Uplink Ports | 4x 10G SFP+ Slots |
