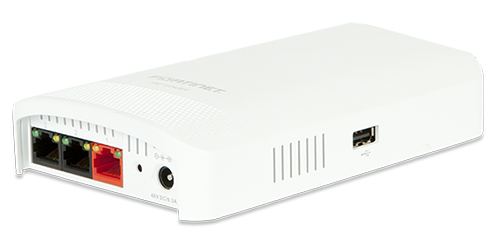

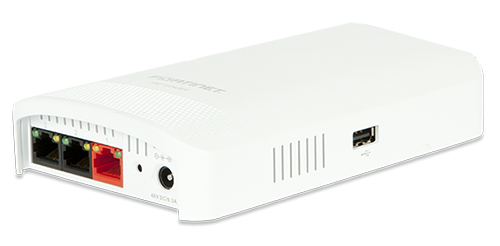

Fortinet FortiAP U24JEV (FAP-U24JEV)

Fortinet
Expected dispatch on : 0March 30 - 31
Part No FAP-U24JEV

Indoor wallplate AP: Single / Dual radio, Internal antenna, 6 x GE RJ45 ports

  • 802.11ac Wave 1
  • 2x2 Radio capable of operating as Dual Band 1x1 Radios
  • 2x2
  • 2x 1x1 radios up to 867 Mbps
Quote

Details


Fortinet FortiAP U24JEV (FAP-U24JEV)

Hardware Type: Wall Plate AP
Number of Radios: 1 (can operate as 2) + 1 BT/BLE
Number of Antennas: 2 Internal + 1 BT/BLE Internal
Antenna Type and Peak Gain: Patch: 3 dBi for 2.4 GHz, 4 dBi for 5 GHz
Frequency Bands (GHz)*: 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Maximum Data Rate: up to 867 Mbps
Bluetooth Low Energy (BT/BLE) Radio: Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power
Interfaces: 4x 10/100/1000 Base-T RJ45 Ports (1x 802.3at PoE (PD), 1x 802.3af PoE (PSE), 2x Non-PoE Ports), 1 Pass-through in RJ45, 1 Pass-through out RJ45
Power over Ethernet (PoE): 802.3af (max PSE output of 4W) or
802.3at (full 802.3af PSE output)
802.11ac Wave 2 MU-MIMO: No
Transmit Beam Forming (TxBF): Yes
Low-Density Parity Check (LDPC) Encoding: Yes
Maximum Likelihood Demodulation (MLD): Yes
Power Supply: SP-FAPU24-PA-XX, GPI-115, or GPI-130
Power Consumption (Max.): 24W (Depends on PoE connected and USB power consumed)


More Information


More Information
Part No FAP-U24JEV
UPC 842382105740
Brand Fortinet
