D-Link DWC-1000 Wireless Controller DWC-1000/E
December 03 - 04
- Wireless Intrusion Detection System (WIDS)
- Rogue AP detection and classification, Captive portal
- WPA/2 Personal/Enterprise, WEP, Firewall Policy2
- IPSec/PPTP/L2TP/SSL VPN server2, Web content filtering2
- Manage up to 12 wireless access points; upgradable to 66 APs1 per controller
D-Link DWC-1000 Wireless Controller DWC-1000/E
DWC-1000 Wireless Controller

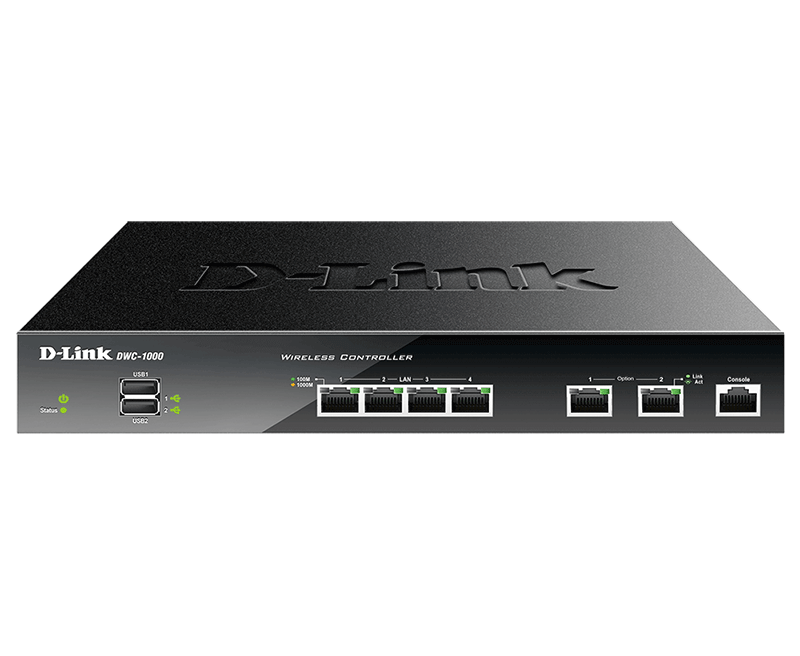

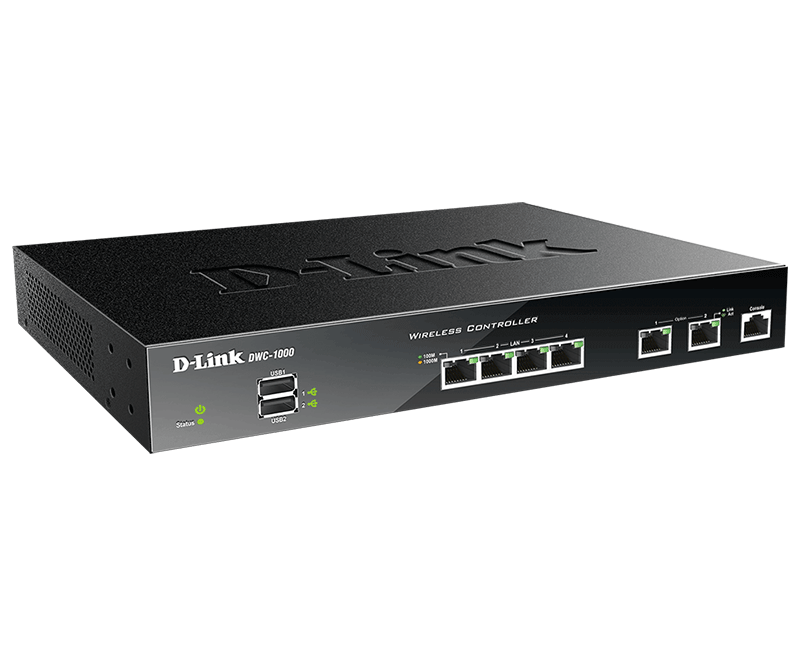

The D-Link DWC-1000 Wireless Controller is a centralized wireless LAN manager developed specifically for campuses, branch offices, and small-to-medium businesses (SMBs). With the ability to manage up to 12 wireless access points (upgradable to 66) and a maximum of 264 wireless access points in a controller cluster, the DWC-1000 is a cost-effective mobility solution for small to medium-size deployments. Its auto-managed AP discovery and single point management allow customers to acquire an enterprise-class system without the burden of maintaining massive and complex configurations.
Robust and Optimized Network
The DWC-1000 features a self-organizing, self-optimizing, and self-healing network capability to increase the stability of the entire wireless network. With interval-based radio scanning and performance analysis, the DWC-1000 automatically adjusts radio channels and output power periodically to avoid interference and keep the wireless network in an optimized state. In the event of a sudden loss of wireless signal caused by a “dead” access point in the network, the DWC-1000 will increase the transmit output power of neighboring access points to expand RF coverage.
The DWC-1000 provides a comprehensive wireless security solution for any network. On the wireless side, the DWC-1000 detects rogue access points and rogue clients using a Wireless Intrusion Detection System (WIDS), as well as anticipating wireless threats, preventing any potential damage and unauthorized access to the network. Other fundamental wireless security features include WPA Personal/Enterprise, WPA2 Personal/Enterprise, WEP, and MAC authentication to determine the identity of wireless devices. The captive portal feature allows administrators to block clients from accessing the network until the clients verify their identities. These authentication and authorization layers also provide a robust security barrier to protect against attacks from within the network.
High Scalability, Availability, and Flexibility
To address the constantly growing scale and needs of business networks, the DWC-1000 offers a flexible selection of expansion features: administrators can purchase a Business Wireless Plus license to upgrade the capabilities of the DWC-1000. D-Link offers two types of Business Wireless Plus licenses: an AP license upgrade and a VPN license upgrade. The AP license upgrade increases the number of manageable access points. By default, the DWC-1000 can manage up to 12 access points. Purchasing an AP license will upgrade this to 66 access points per controller. The VPN license upgrade enables the DWC-1000 to provide VPN, router, and firewall functionality. The firewall function allows administrators to control network access by setting classification policies. The dual option ports provide link failover and provide Internet connection redundancy to ensure uninterrupted Internet connectivity. The virtual private network (VPN) features provide secure remote control to manage access points in branch offices. Site-to-site VPN tunnels use the IP Security (IPSec)
Protocol, Point-to-Point Tunneling Protocol (PPTP), or Layer 2 Tunneling Protocol (L2TP) to facilitate branch office connectivity through encrypted virtual links. In addition, the Secure Sockets Layer (SSL) VPN tunnels empower your mobile users by providing remote access to a central corporate database.
Centralized remote control of managed access points provides a simple way to automatically discover compatible D-Link wireless access points, add them to the managed access point list, and configure them with one-time deployment settings. With the controller clustering feature, the administrator can easily log into one wireless controller and perform essential configurations on other wireless controllers in the cluster group. The real-time monitoring of access points and associated client stations enable the efficient utilization of network resources. System alarm and statistics reports on managed access points also help the administrator to use the DWC-1000 to manage, control, and optimize network performance.
|Country of Manufacture||China|
|Wireless Security||WPA, WPA2|
|Advanced Functions||Router/ Access Point Mode|
|Working Modes||Access Point Mode|
