D-Link DIS-200G-12S/U DIS-200G Series Layer 2 Gigabit Industrial Smart Managed Switches
December 06 - 07
KEY FEATURES:
- IEEE 802.1Q and port-based VLAN
- IEEE 802.1p Quality of Service (QoS)
- STP/RSTP/MSTP, Port mirroring
- Link aggregation, Bandwidth control
- Broadcast storm control, IGMP/MLD Snooping
Details
D-Link DIS-200G-12S/U DIS-200G Series Layer 2 Gigabit Industrial Smart Managed Switches
DIS-200G-12S/U DIS-200G Series Layer 2 Gigabit Industrial Smart Managed Switches
The DIS-200G Series Layer 2 Gigabit Industrial Smart Managed Switches are equipped with 8 PoE-capable 10/100/1000BASE-T ports (PoE models), 2 10/100/1000BASE-T ports, and 2 SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. The DIS-200G Series furthermore integrates advanced management and security functions to provide a complete industrial networking solution.
Durable and Reliable Design
The DIS-200G Series switches are housed in a highly resistant IP30-rated metal casing to protect them from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-200G Series from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-200G Series while also being able to operate in a wider temperature range of up to 75 °C. For increased flexibility, the DIS-200G Series can be mounted on a DIN rail, wall-mounted, or installed in an equipment rack.
Additionally, the DIS-200G Series features high-capacity 6 kV surge protection on all copper ports to help prevent damage to the switch and connected devices caused by sudden power surges and lightning strikes. The built-in surge protection of up to 6 kV can mitigate the damage to the switch from both indoor and outdoor devices and network connections by absorbing the excess energy while still letting through the amount of power required for the switch to operate normally. This increases network reliability, reduces repair costs, and removes the need for replacement hardware in the event of an electrical surge or lightning strike.
High Redundancy and Reliability
The DIS-200G Series supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the device continues to operate in the event of a primary power supply failure.
Surveillance Traffic Optimization
The DIS-200G Series supports the Auto-Surveillance VLAN (ASV) feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting this type of traffic from the rest of the network. This provides increased security of surveillance data, and gives the traffic a higher priority through the switch, minimizing the chances of video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware while simultaneously reducing maintenance costs.
Easy Troubleshooting
The DIS-200G Series features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.
Power over Ethernet Support
The DIS-200G-12PS and DIS-200G-12PSW are PoE-ready switches with a total PoE budget of 240 W1, capable of supplying up to 30 W of power per port to connected PoE-enabled devices. This effectively reduces deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.
Flexible Availability
- Available in PoE and non-PoE models
- Industrial model variations with wider operating temperature ranges
Robust and High-Redundancy Design
- Fanless, passive cooling design
- High EMC endurance
- Built-in 6 kV surge protection on copper ports
- Ethernet Ring Protection Switching (ERPS)

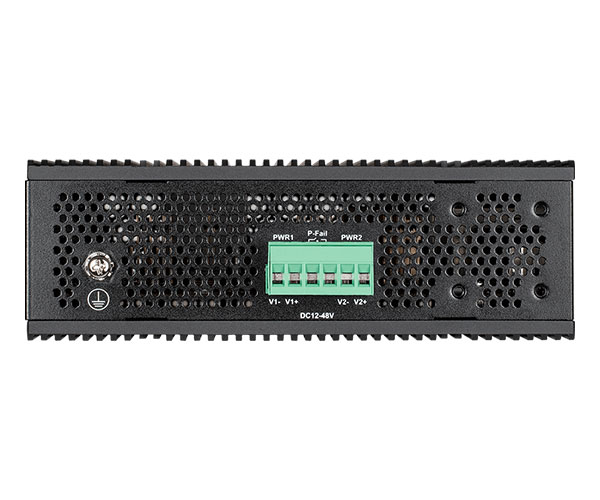

- Dual power input for redundant power supplies
Advanced Features
- Auto-Surveillance VLAN 2.0 (ASV 2.0)
More Information
Part No | DIS-200G-12S/U |
---|---|
Dimensions Length (inch) | 210 |
Dimensions Width (inch) | 171.2 |
Dimensions Height (inch) | 48 |
Country of Manufacture | China |
Brand | D Link |
Switches | Non PoE |
Port Count | 11 to 18 |
PoE Power | 0 to 100 |
Memory | 256 MB flash |
