D-Link DGS-3120-24SC/ESI DGS-3120 Series xStack L3 Managed Gigabit Switches
October 05 - 06
- 24 or 48 10/100/1000 Mbps ports and 16 SFP ports (model-specific)
- 4 or 8 combo Gigabit copper/SFP uplinks for connections in enterprise or metropolitan areas
- 802.3af and 802.3at Power Over Ethernet support
D-Link DGS-3120-24SC/ESI DGS-3120 Series xStack L3 Managed Gigabit Switches
DGS-3120-24SC/ESI DGS-3120 Series xStack L3 Managed Gigabit Switches

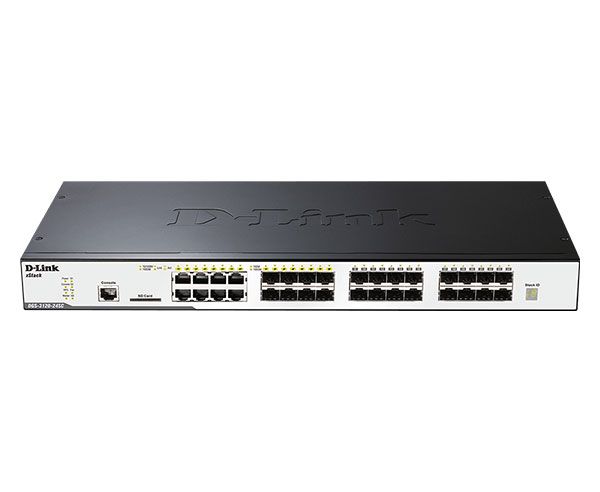

The DGS-3120 Series xStack switches are enhanced L3 Gigabit switches designed to connect end-users in a secure campus or enterprise network. These switches support physical stacking1, multicast, and enhanced security, making them an ideal Gigabit access layer solution. The DGS-3120-24TC/48TC provides 20 or 44 10/100/1000 Mbps Gigabit Ethernet ports, and 4 combo 1000BASE-T/SFP Gigabit Ethernet ports. The DGS-3120-24PC/48PC provides 24 or 48 10/100/1000 Mbps Power over Ethernet (PoE) Gigabit Ethernet ports and 4 combo 1000BASE-T/ SFP Gigabit Ethernet ports. The DGS-3120-24SC/24SC-DC provides 16 SFP Gigabit Ethernet ports and 8 combo 1000BASE-T/SFP Gigabit ports. Each 10/100/1000 Mbps port on the DGS3120-24PC/48PC supports the 802.3af and 802.3at PoE standards. The default power budget for these models is 370 watts and can be expanded to 760 watts with the DPS-700 RPS. The switches are also equipped with an SD Card slot, allowing the user to boot images and upload configuration files directly from an SD Card as well as conveniently save syslog files onto the SD Card.
Standard, Enhanced and Routed Images
The DGS-3120 Series has support for three different software images - the Standard Image (SI), Enhanced Image (EI), and Routed Image (RI). The Standard Image provides sophisticated features for campus or enterprise usage. It includes advanced Quality of Service (QoS), traffic shaping, L2 multicasting, robust security features, and IPv6 features which are suitable for nextgeneration IPv6 networks or triple play applications over Metro Ethernet. The Enhanced Image supports ERPS, Double VLAN (Q-in-Q), Ethernet OAM, Static Route, IMPB, and sFlow. The Routed Image supports DHCP Server, VRRP, IPv6 Tunneling, RIP, OSPF, IGMP, MLD, PIM, and DVMRPv3.
Enhanced Network Reliability

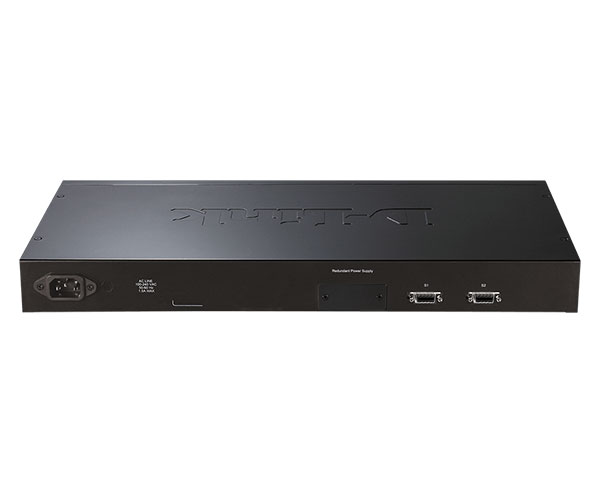

The DGS-3120 Series targets enterprises, campuses, and customers who require a high level of network security and maximum uptime. All the models in the DGS-3120 Series except the DGS-3120-24SC-DC support an external redundant power supply so that continued operation can be assured. They also include other features, such as 802.1D Spanning Tree (STP), 802.1w Rapid Spanning Tree (RSTP), and 802.1s Multiple Spanning Tree (MSTP), Loopback Detection (LBD), and Broadcast Storm Control, that enhances network resilience. G.8032 Ethernet Ring Protection Switching (ERPS)2 minimizes the recovery time to 50 ms. For load sharing and redundancy backup in a switch cascading/server attachment configuration, the DGS-3120 Series provides dynamic 802.3ad Link Aggregation Port Trunking.
The DGS-3120 Series provides users with the latest security features such as Multi-layer and Packet Content Access Control Lists (ACL), Storm Control, and IP-MAC-Port Binding (IMPB)2 with DHCP Snooping. The IP-MAC-Port Binding feature allows administrators to bind a source IP address with an associated MAC and also define the port number to enhance user access control. With the DHCP Snooping feature, the switch automatically learns IP/MAC pairs by snooping DHCP packets and saving them to the IMPB white list. In addition, the D-Link Safeguard Engine identifies and prioritizes “CPU interested” packets to prevent malicious traffic from interrupting normal network flows, and to protect switch operation.
Identity Driven Network Policies
The DGS-3120 Series supports authentication mechanisms such as 802.1X, Webbased Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and easy deployment. After authentication, individual policies such as VLAN membership, QoS policies, and ACL rules can be assigned to each host. In addition, the switch also supports Microsoft® NAP (Network Access Protection). NAP is a policy enforcement technology that allows customers to protect network assets from compromised computers by enforcing compliance with network health policies.
Traffic Management for Triple Play
The DGS-3120 Series implements a rich set of multilayer QoS/CoS features to ensure that critical network services such as VoIP, video conferencing, IPTV, and IP surveillance are given high priority. Traffic Shaping features guarantee bandwidth for these services when the network is busy. L2 Multicast support enables the DGS-3120 to handle growing IPTV applications. Host-based IGMP/MLD Snooping allows multiple multicast subscribers per physical interface and ISM VLAN to send multicast streams in a multicast VLAN to save bandwidth and to provide better security to the backbone network. The ISM VLAN profiles allow users to bind/replace the pre-defined multicast registration information to subscriber ports quickly and easily.
Proactive, Effective Network Management
To uphold enterprise customers’ Service Level Agreements (SLA), service providers must reduce their Mean Time to Repair (MTTR) and increase service availability. Ethernet OAM features address these challenges and enable service providers to offer carrier-grade services. The DGS-3120 Series supports industry-standard OAM tools, including IEEE 802.3ah, IEEE802.1ag, and ITU-TY.1731. Connectivity Fault Management (CFM) provides tools to monitor and troubleshoot end-to-end Ethernet networks, allowing service providers to check connectivity, isolate network issues, and identify customers affected by network issues.
The DGS-3120 Series is fully compliant with future IPv6 networks. It supports remote IPv6 manageability from Telnet, HTTP, or SNMP. To create secure IPv6 networks, the DGS-3120 Series uses IPv6 ACL, DHCPv6 Snooping, and Neighbor Discovery (ND) Snooping functions to protect the network from illegal IPv6 clients. The DGS-3120 Series has been certified with IPv6 Ready Logo Phase 2 from the IPv6 forum, a worldwide IPv6 advocacy consortium. The IPv6 Ready Logo Program ensures the conformance and interoperability of IPv6 products.
D-Link is striving to take the lead in developing innovative and power-saving technology that does not sacrifice operational performance or functionality. The DGS-3120 Series implements the D-Link Green Technology, which includes a power saving mode, Smart Fan, reduced heat, and cable length detection. The power-saving feature automatically powers down ports that have no link or link partner. The Smart Fan feature enables the built-in fans to automatically turn on at a certain temperature, providing continuous, reliable, and ecofriendly operation of the switch. Energy Efficient Ethernet (EEE) standard is also supported, which helps to reduce the operating cost of the DGS-3120 Series.
D-Link’s Single IP Management (SIM) simplifies and speeds up management tasks, allowing multiple switches to be configured, monitored, and maintained from any workstation running a web browser through one unique IP address. This virtual stack is managed as a single object, having all units maintained by one IP address. The DGS-3120 Series also supports standard-based management protocols such as SNMP, RMON, Telnet, Console, Web-based GUI, and SSH/SSL security authentication.
High Bandwidth Physical Stacking1
- 2 dedicated stacking ports per switch
- Up to 40 Gbps Full-Duplex Stacking Bandwidth
- Up to 6 units (288 Gigabit ports) per stack
- 802.1D/802.1w/802.1s Spanning Tree
- Ethernet Ring Protection Switching (ERPS)2
- IGMP/MLD Snooping
- PIM DM/SM/SSM/Spare-Dense Mode
- 802.3ah Link OAM
- 802.1ag, ITU-T Y.1731 Service OAM
|Country of Manufacture||China|
|Port Count||19 to 28|
|PoE Power||0 to 100|
|Memory||256 MB flash|
