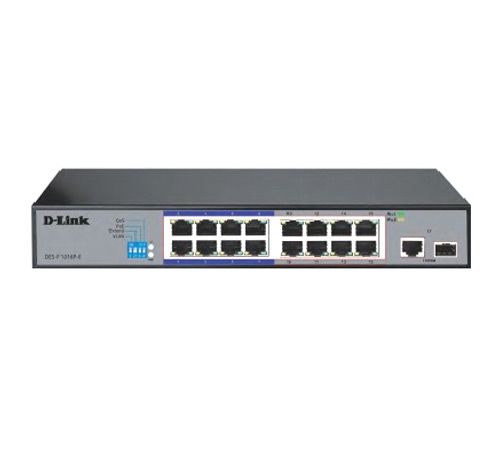

D-Link DES-F1016P-E/B 16-Port 10/100 Long Range PoE+ Surveillance Switch

D Link
Expected dispatch on : 0March 29 - 30
Part No DES-F1016P-E/B

KEY FEATURES:

  • 16 10/1 0OMbps Fast Ethernet ports
  • 2 Gigabit Ports with 1 Combo (RJ45/SFP) uplink ports
  • 150 watts available for PoE
  • Flow control for protection against data loss
  • Maximum distance of 250m
Quote

Details


D-Link DES-F1016P-E/B 16-Port 10/100 Long Range PoE+ Surveillance Switch

DES-F1016P-E/B 16-Port 10/100 Long Range PoE+ Surveillance Switch

The D-Link DES-F1016P-E is a 16 port 100Mbps with 16 10/100 Mbps PoE ports, 2 Gigabit Ports with 1 Combo (RJ45/SFP) uplink ports. This Switch enables users to easily connect and supply power to PoE-capable devices such as wireless Access Points (APs), IP cameras.

Power Over Ethernet

The DES-Fl016P-E supports both IEEE 802.3at and IEEE 802.3af PoE protocol. With a total PoE budget of 150 watts ,allowing users to attach an IEEE 802.3af-compliant device to the DES-Fl016P-E without requiring additional power. PoE is especially suitable for devices that are far from power outlets or when users want to minimize the clutter of extra cables as power is supplied via the Ethernet cables themselves

Standards

- IEEE 802.3 1 0BASE-T Ethernet (twist-pair copper)
- IEEE 802.3u 1 00BASE-TX Fast Ethernet (twisted pair copper)
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted pair copper)
- IEEE 802.3z 1000 BASE-X (fiber-optic)
- IEEE 802.3af Power over Ethernet
- IEEE 802.3at Power over Ethernet

Easy to Use

- Plug-and-play installation
- IEEE 802.3x Flow Control
- Auto MDI I MDIX crossover for all ports


More Information


More Information
Part No DES-F1016P-E/B
Dimensions Length (inch) 285
Dimensions Width (inch) 180
Dimensions Height (inch) 44
Country of Manufacture China
Brand D Link
Switches PoE
Port Count 11 to 18
PoE Power 101 to 200
Memory 256 MB flash
