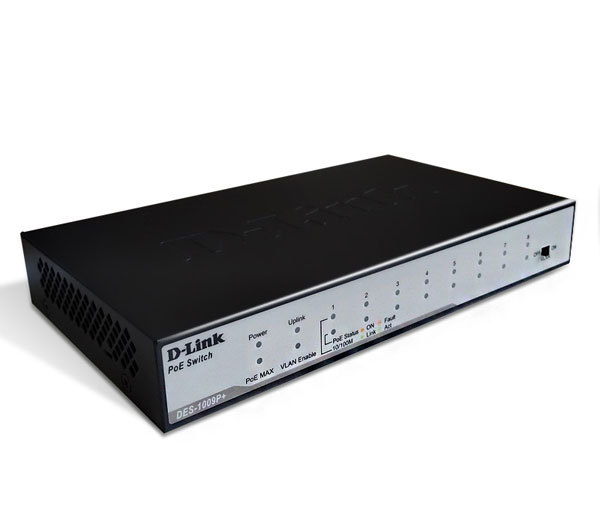

D-Link DES-1009P+/ME 8-Port Fast Ethernet PoE Desktop Switch

D Link
Expected dispatch on : 0April 24 - 25
Part No DES-1009P+/ME


  • Convenient Design
  • Compact lightweight chassis
  • Ports located conveniently at the rear
  • Silent operation
  • Function switch: one-click VLAN


D-Link DES-1009P+/ME 8-Port Fast Ethernet PoE Desktop Switch

DES-1009P+/ME 8-Port Fast Ethernet PoE Desktop Switch

The DES-1009P+ 8port Fast Ethernet PoE Desktop Switch enables both home and office users to easily connect and supply power to Power over Ethernet (PoE) devices such as wireless Access Points (APs), IP cameras, and IP phones while adding more Ethernet devices like computers, printers, and Network Attached Storage (NAS) onto a network. Built with home and small business users in mind, this compact PoE switch operates silently, making it  ideal for use in virtually any room or office.

Power over Ethernet IEEE 802.3af

The DES-1009P+ features 8 10/100BASE-TX ports that support the IEEE 802.3af PoE protocol. Each of the 8 PoE ports can supply up to 30 Watts, a total PoE budget of 96 Watts, allowing users to attach an IEEE 802.3af compliant device requiring to the DES-1009P+ without additional power. PoE is especially suitable fordevices that are far from power outlets or when you want to minimise the clutter of extra cables.

Superior Performance

No configuration is required and installation is quick nad easy. Support for Auto-MDI/MDI-X on all ports eliminates the need for crossover cables when connecting to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10 or 100 Mbps) and intelligently adjusts for compatibility and optimal performance. The switch has been designed without fans so you can be sure of silent operation wherever it is installed. The DES-1009P+ also features diagnostic LEDs, which display status and activity, allowing you to quickly detect and correct problems on the network. With wire-speed filtering and store-and-forward switching, the DES-1009P+ also maximises network performance while minimising the transmission of bad network packets. Combining the convenience of PoE, superior performance, and ease of use, the 8-Port Fast Ethernet PoE Desktop Switch is the ideal choice for adding PoE devices to either a home or small business network.

Hassle-Free Setup

The 8-Port Fast Ethernet PoE Desktop Switch is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. Connect multiple computers, share files, music, and video across your home or small office network, or even create a multi-player gaming environment.

Compact and Silent

The DES-1009P+ has a compact and silent design, meaning it can be placed in any location. The power connector and ports are all located at the rear of the switch allowing the cables to be tucked away conveniently. The DES-1009P+ is fan less, so the switch operates silently, allowing you to work or play without unnecessary noise distractions.

High-Speed Networking

- 8 100M PoE+ ports, 1 Gigabit uplink port
- Full/half-duplex for Ethernet/Fast Ethernet speeds


- IEEE 802.3af PoE
- 8 PoE ports, each supporting up to 30W
- PoE budget of 96 W


- IEEE 802.3x flow control
- Store-and-forward switching scheme

Easy Setup

- Plug-and-play installation
- Auto MDI/MDIX crossover for all ports

More Information

More Information
Part No DES-1009P+/ME
Dimensions Length (inch) 175
Dimensions Width (inch) 105
Dimensions Height (inch) 27
Country of Manufacture China
Brand D Link
Switches PoE
Port Count 1 to 10
PoE Power 0 to 100
Memory 256 MB flash
Throughput up to 2.38Mpps
Switching Capacity 3.2Gbps
