D-Link DES-1005P/B 5-Port 10/100 Switch with 4 PoE Ports

D Link
Expected dispatch on : 0December 06 - 07
Part No DES-1005P/B

KEY FEATURES:

  • Five 10/100 Mbps Ethernet ports
  • Full/half-duplex for Ethernet/Fast Ethernet
  • IEEE 802.3x flow control
  • Store-and-forward switching scheme
  • RoHS-compliant
Quote

Details

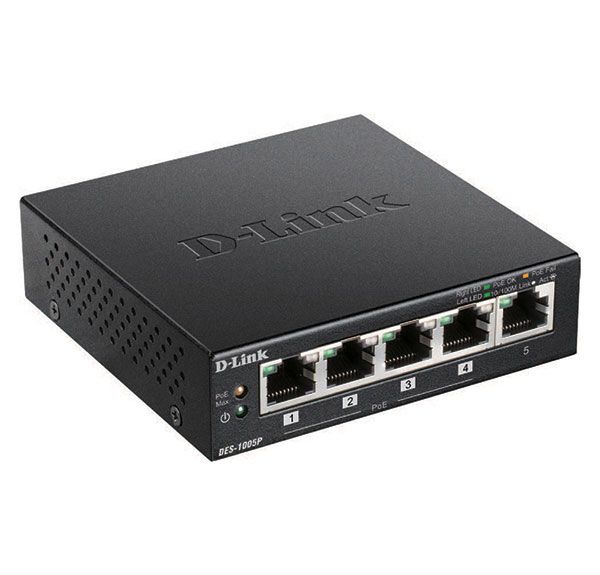

D-Link DES-1005P/B 5-Port 10/100 Switch with 4 PoE Ports

DES-1005P/B 5-Port 10/100 Switch with 4 PoE Ports

The D-Link DES-1005P 5-Port 10/100 Switch with 4 PoE Ports enables you to connect Power over Ethernet (PoE) devices such as wireless access points (APs), IP cameras, and IP phones to the network. Built with home and small business users in mind, the DES-1005P is compact and operates silently, making it ideal for most rooms and offices.

Power over Ethernet

The DES-1005P features four 10/100BASE-T ports that support the IEEE 802.3af and IEEE 802.3at PoE protocols, supplying up to 30 W on each PoE port and providing a total power budget of 60 W. You can connect compatible devices to the DES-1005P without using an additional power supply. This allows you to save on cabling and to install devices in locations without immediate access to power outlets.

High Performance

The DES-1005P features plug-and-play installation and requires no configuration. Auto MDI/MDI-X support on all ports removes the need for crossover cables when connecting to another switch or hub, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. With wire-speed filtering and store-and-forward switching, the DES-1005P maximizes network performance while minimizing the transmission of bad network packets.

Green Technology

The DES-1005P features green technology such as IEEE 802.3az EnergyEfficient Ethernet (EEE), link status detection, and cable length detection. EEE adjusts the power consumption of the switch based on network utilization, reducing the cost of ownership during periods of inactivity. Link status detection powers down ports when no links are detected, saving power when connected devices are shut down or disconnected. Cable length detection adjusts the power output of the port based on the cable length, reducing the power requirements of the switch.

Compact and Silent

The compact design of the DES-1005P allows placement in most locations, including those where space is at a premium. The desktop form factor provides everything you need to set up a new network or expand an existing network, while the fanless design ensures silent operation even in noisesensitive areas such as workstations and meeting rooms.

Easy Setup

- Plug-and-play installation
- Auto MDI/MDI-X crossover on all ports

Stylish Design

- Compact lightweight chassis
- Noise-free operation

PoE Functionality

- Four PoE ports
- IEEE 802.3af/at compliant
- 60 W total power budget
- Up to 30 W power output per PoE port


More Information


More Information
Part No DES-1005P/B
Dimensions Length (inch) 100
Dimensions Width (inch) 98
Dimensions Height (inch) 28
Country of Manufacture China
Brand D Link
Switches PoE
Port Count 1 to 10
PoE Power 0 to 100
Memory 256 MB flash
