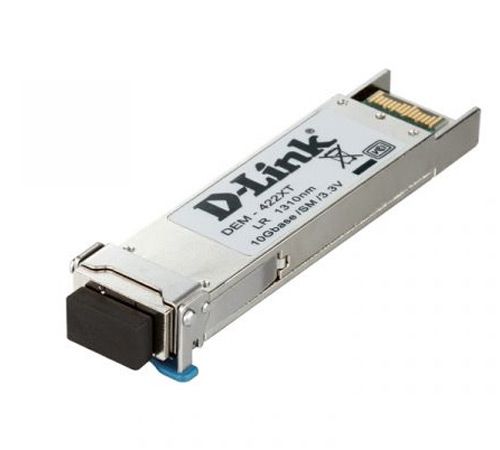

D-Link DEM-422XT 10GBASE-LR Fiber XFP 10Gigabit Transceiver

DEM-422XT 10GBASE-LR Fiber XFP 10Gigabit Transceiver

Up to 10 km 10Gigabit Transmission on Single-Mode Fiber

The D-Link DEM-422XT transceiver provides a high performance solution for serial optical data communication applications specified for 10Gbps. It's Small Form Factor Pluggable (XFP) compliant with the Multi-Source Agreement (MSA) Specification. The transceiver has a duplex LC connector and provides IEEE 802.3ae 10GBASE-LR compliant link for up to 10.7Gbps transmission for long distance fiber cable applications.

Optical Data Communication

This transceiver provides a high performance and costeffective solution for serial optical data communication applications specified for multi-mode supporting up to 10.7Gbps rate. It operates with +3.3V and +5V power supply. The transceiver is intended for multi-mode fiber, operates at a nominal wavelength of 1310nm and complies with Multi-Source Agreement (MSA) Small Form Factor Pluggable (XFP). The transceiver consists of a transmitter  optical subassembly, a receiver optical subassembly and an electrical subassembly. It is housed in a metal package and the combination produces a reliable component.

Wide Ranging Applications

This fiber Gigabit transceiver is ideal for deployment as for Ethernet links, fiber channel links at 10Gbps, high-speed backbone interconnection and switched backbones.

Product Features

- Compliant with Multi-Source Agreement (MSA) Small Form Factor Pluggable (XFP)
- Duplex LC connector
- Full duplex 802.3x Flow Control support
- Built-in 2-wire digital management and diagnostic interface
