D-Link ANT70-0800 Dual-Band Omni Directional Antenna

D Link
Expected dispatch on : 0April 24 - 25
Part No ANT70-0800


  • Suitable For Outdoor Deployment
  • Durable, waterproof design ideal for outdoor use
  • Pole-mount installation
  • Water/Dustproof (IP67)


D-Link ANT70-0800 Dual-Band Omni Directional Antenna

ANT70-0800 Dual-Band Omni Directional Antenna

D-Link’s ANT70-0800 Dual-Band Omni Directional Antenna is suitable for outdoor installation. It provides a Gain of 8dBi for 2.4GHz band and 10dBi for 5GHz band to give your wireless network an extended operating range. For best performance, users can use an antenna of the same Gain or higher, at the other end of the connection to take advantage of this antenna’s powerful signal transmission1.

Point-to-Multi Point Application

The ANT70-0800 is ideal for operating in modes such as point-to-multi point WDS. An example application of this antenna is to extend your local area network (LAN) by connecting LANs at two physically separated locations. Alternatively, Wireless Internet Service Provider (WISP) subscribers can also use this antenna to establish a strong connection between their host and to their ISP’s outdoor AP.

Weatherproof Design

The ANT70-0800 features a durable build and a waterproof design which provides complete protection from extreme weather. Furthermore, it is made of corrosion-resistant material, enabling it to withstand harsh outdoor conditions and wind speeds up to 216km/hr and is robust enough to remain outside indefinitely.

Flexible Deployment

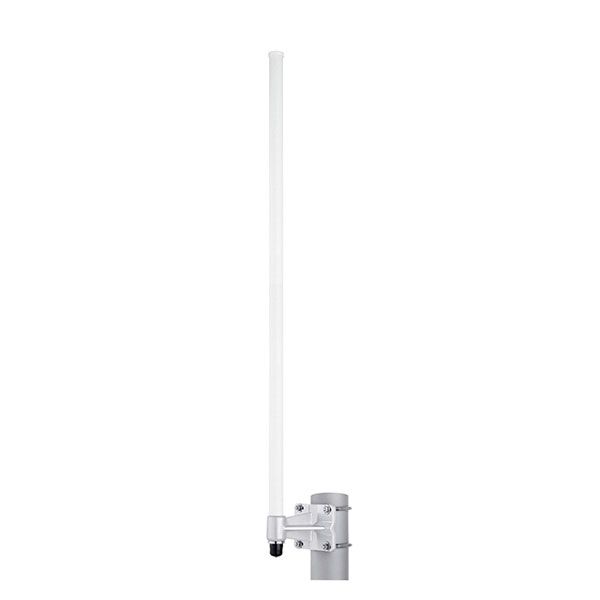

For ready installation, the ANT70-0800 antenna includes a pole mounting kit, which allows it to be placed on a pole for better wireless coverage. It also comes equipped with an indoor adapter cable fitted with N-type and RP-SMA connectors for easy connection to a host.

Dual Frequency Band Support

- Supports 2.4GHz to 2.5GHz frequency range
- Supports 5.1GHz to 5.9GHz frequency range

Extensive Coverage

- Enhances wireless range with high Gains of 8dBi for 2.4GHz band and 10dBi for 5GHz band

Ideal For Point-to-Multi Point Connection

- Access high-speed Internet and hot spot applications

Optional Accessory

- ANT70-SP Surge Protector

More Information

More Information
Part No ANT70-0800
Country of Manufacture China
Brand D Link
Frequency 5 GHz, 2.4 GHz
