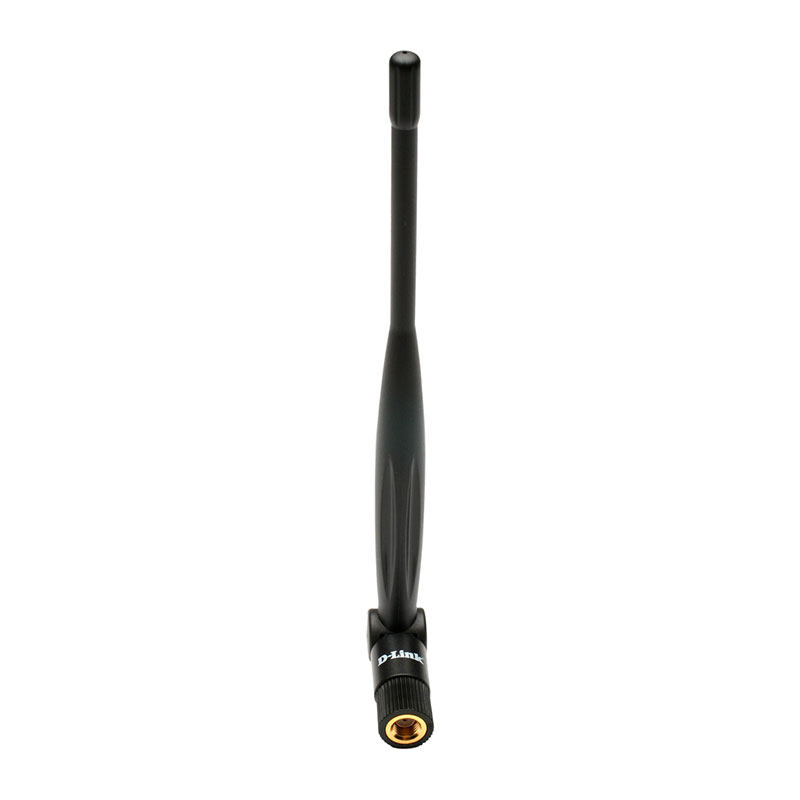

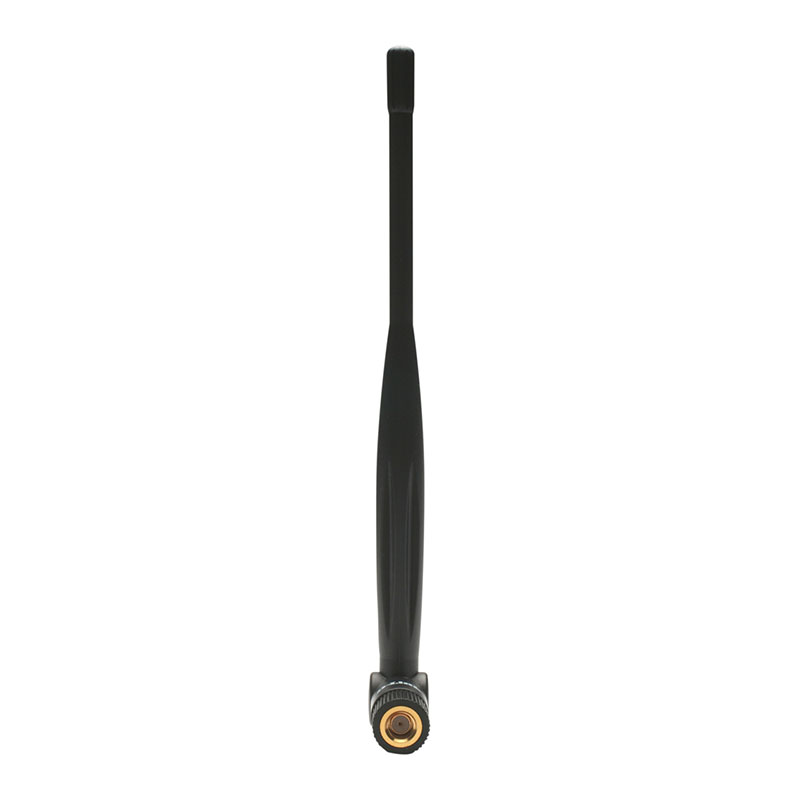

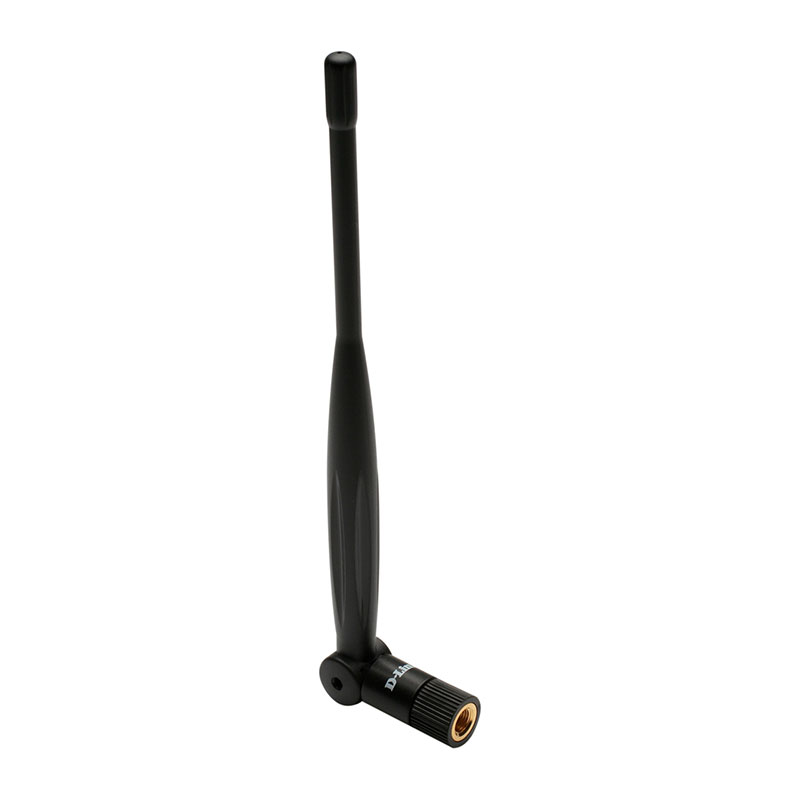

D-Link ANT24-0502 5dBi Omni-Directional Antenna

D Link
Expected dispatch on : 0May 22 - 23
Part No ANT24-0502


  • Complies to IEEE 802.11b/g 2.4GHz Standard
  • 5dBi Peak Gain
  • Expands Wireless Operation Range to 360 Degrees Coverage
  • Antenna Angle Can Be Adjusted for Best Signal Transmission/ Reception
  • RP-SMA Plug Connector, Easy Installation


D-Link ANT24-0502 5dBi Omni-Directional Antenna

ANT24-0502 5dBi Omni-Directional Antenna

The ANT24-0502 5dBi indoor omni-directional antenna can increase the effective wireless operation range of 802.11b and 802.11g wireless devices. Providing 5dBi peak Gain, it can be connected to a wireless access point or router to improve signal transmission and reception in the omni 360 degrees direction and provide point to multi-point wireless signal coverage.

Wireless devices with lower Gain detachable antennas can use this antenna to get signal transmission/reception. The ANT24-0502 antenna is equipped with an RP-SMA plug and can be attached to a wireless device equipped with an RP SMA receptacle. To attach the ANT24-0502 antenna, remove the default detachable antenna from the wireless access point or router, and connect the ANT24-0502 antenna to the RP-SMA receptacle of the wireless device.

More Information

More Information
Part No ANT24-0502
Country of Manufacture China
Brand D Link
Frequency 2.4 GHz
