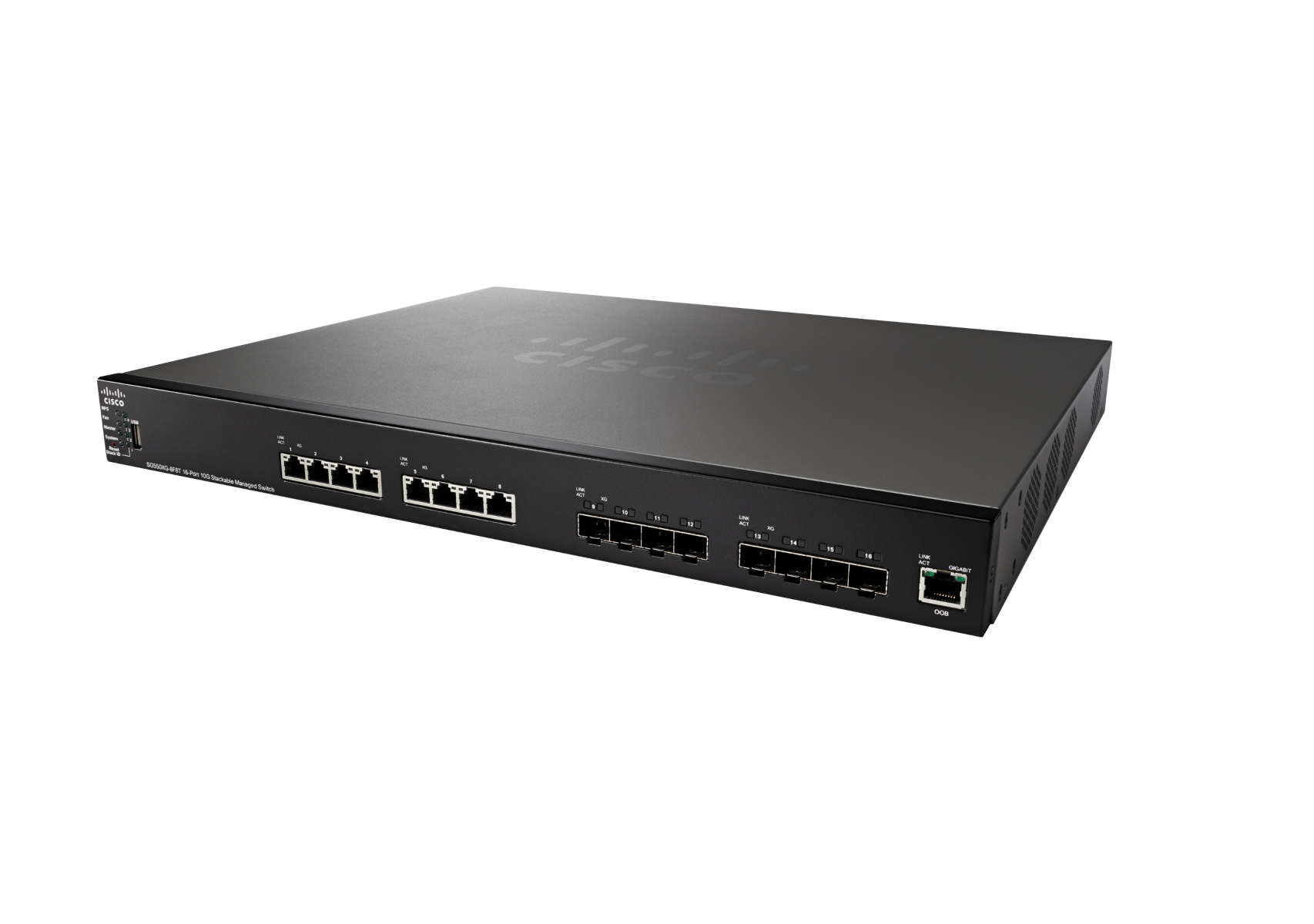

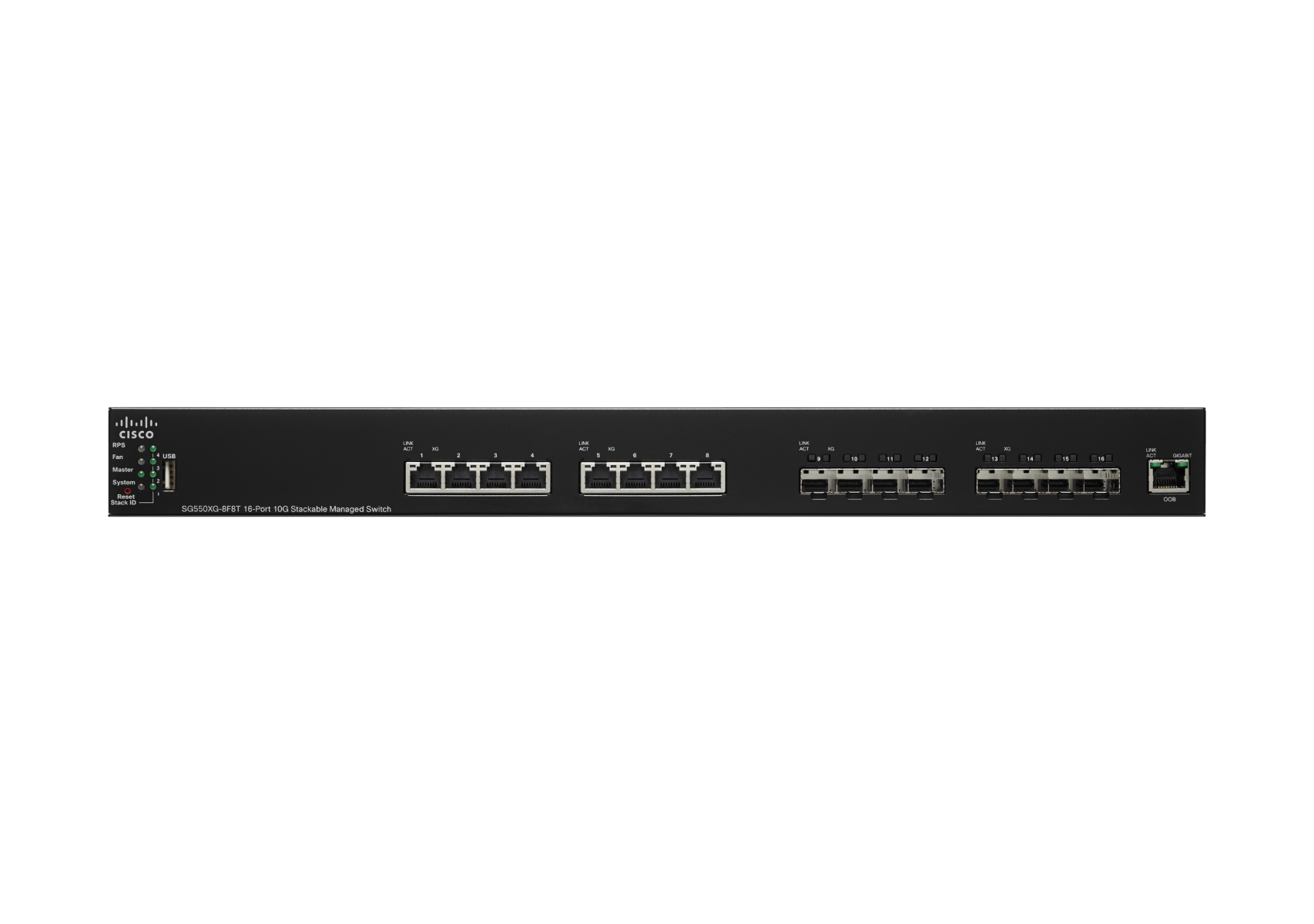

Cisco SG5b5S0XG-8F8T Stackable Managed Switch (SG550XG-8F8T-K9-UK)
Expected dispatch on : November 07 - 08
Part No SG550XG-8F8T-K9-UK
Cisco SG5b5S0XG-8F8T Stackable
Managed Switch-8 x 10G, 8-SFP+ slots ports
Stacking capability up to 8 units
Power redundancy
Configuration via Web UI and CLI
Details
Cisco SG5b5S0XG-8F8T Stackable Managed Switch (SG550XG-8F8T-K9-UK)
Short Description | Switch: L3 managed, 8 x 10GE copper + 8 x 10GE SFP+, rack-mountable |
Device type | Switch: 10G, 16 ports, L3 managed |
Enclosure type | Rack-mountable, 1RU |
Ports | 8 10GE copper + 8 10GE SFP+ plus 1 GE OOB Management |
Power over Ethernet (PoE) | None |
Switching capacity | 320 Gbps |
Forwarding performance (64-byte packets) | 238.08 Mpps |
MAC address table size | 64,000 entries |
Capacity (active VLANS) | 4000 |
Routing protocol | RIPv2, VRRP, PBR, static IPv4/IPv6 routing |
Remote management protocol | SNMPv1, RMON1, RMON2, RMON3, RMON9, Telnet, SNMPv3, SNMPv2c, HTTP, HTTPS, SSH, CLI |
Features | Stacking, flow control, Layer 2 switching, Layer 3 switching, |
VLAN support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, access control list (ACL) support, quality of service (QoS), reset button, | |
LACP support, Energy Efficient Ethernet, dynamic VLAN support (GVRP), advanced threat protection, | |
IPv6 first-hop security, static routing, dynamic routing, policy based routing, sFlow, RSPAN, hardware redundancy | |
Compliant IEEE standards | 802.3, 802.3u, 802.3z, 802.1D, 802.1Q, 802.3ab, |
802.3ae, 802.3an, 802.1p, 802.3x, 802.3ad (LACP), 802.1w, 802.1x, 802.1s, 802.3az | |
RAM | 512 MB |
Flash memory | 256 MB |
Status indicators | System, Master, Fan, RPS, Stack ID, Link/Speed per port |
Interfaces | 8 x 10BASE-T/100BASE-TX/1000BASE-T/10GBASE-T, RJ-45, 8 10GE SFP+ slots, 1 x GE OOB port, 1 x console, RJ45, 1 x RPS port |
Power supply | Internal |
Voltage required | AC 120/230V (50/60 Hz) |
Miscellaneous | |
Width | 17.3 in. (440 mm) |
Depth | 13.8 in. (350 mm) |
Height | 1.7 in. (44 mm) |
Weight | 11.53 lb (5.23 kg) |
Cables included | 1 x console cable |
Compliance standards | UL 60950, FCC Part 15 A, CSA 22.2 |
Environmental Parameters | |
Minimum operating temperature | 32-F (0-C) |
Maximum operating temperature | 122-F (50-C) |
Humidity range operating | 10-90% (noncondensing) |
Minimum storage temperature | -4-F (-20-C) |
Maximum storage temperature | 158-F (70-C) |
Humidity range storage | 10-90% (noncondensing) |
More Information
Part No | SG550XG-8F8T-K9-UK |
---|---|
Country of Manufacture | China |
Brand | Cisco |
