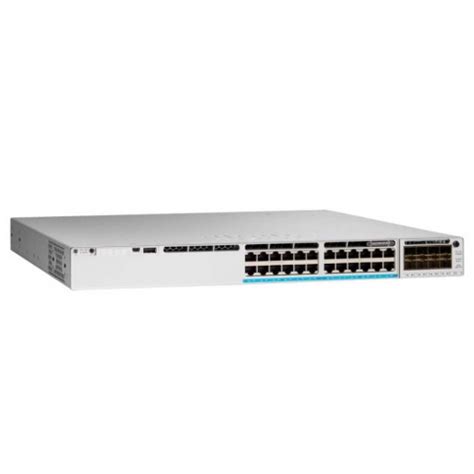

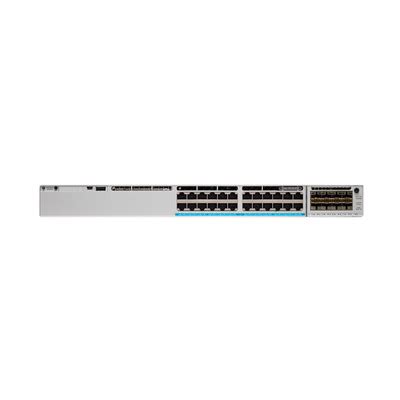

Cisco Catalyst 9300 24-port data only, Network Essentials
November 11 - 12
The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment
with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient
architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture
features Cisco StackPower®, which delivers high-density Cisco Universal Power over Ethernet (Cisco
UPOE®) and Power over Ethernet Plus (PoE+) ports.
Details
Cisco Catalyst 9300 24-port data only, Network Essentials
C9300-24T-E Specification
Part Number
C9300-24T-E
Product Description
Catalyst 9300 24-port data only, Network Essentials
Total 10/100/1000 or Multigigabit copper ports
24
Default AC power supply
350W AC
Available PoE power
--
Cisco StackWise-480
Yes
Cisco StackPower
Yes
Default power supply
PWR-C1-350WAC
Switching capacity
208 Gbps on 24-port Gigabit Ethernet model
Stacking bandwidth
480 Gbps
Total number of MAC addresses
32,000
Total number of IPv4 routes (ARP plus learned routes)
32,000 (24,000 direct routes and 8000 indirect routes)
IPv4 routing entries
32,000
IPv6 routing entries
16,000
Multicast routing scale
8000
QoS scale entries
5120
ACL scale entries
5120
Packet buffer per SKU
16 MB buffer for 24- or 48-port Gigabit Ethernet models
FNF entries
64,000 flow on 24- and 48-port Gigabit Ethernet models
More Information
Part No | C9300-24T-E |
---|---|
GTIN-/EAN-Code | 0889728035781 |
UPC | 889728035781 |
Brand | Cisco |
Switches | PoE |
Ports | 24 |
