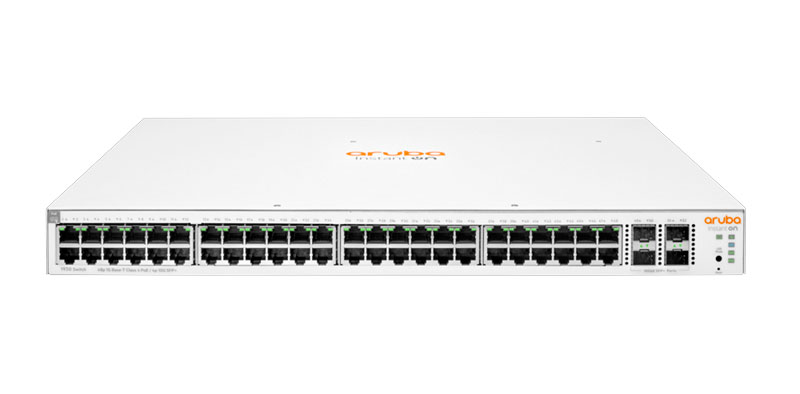

Aruba JL686A Instant On 1930 48G Class4 PoE 4SFP SFP 370W Switch
October 04 - 05
Aruba Instant On 1930 48G Class4 PoE 4SFP/SFP+ 370W Switch.
This model has 48 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports.
Provides 370 W Class 4 PoE power.
Inclusive of 5% VAT
Details
Aruba JL686A Instant On 1930 48G Class4 PoE 4SFP SFP 370W Switch
Buy Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. This cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.
Advanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant-On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 48 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports. Provides 370 W Class 4 PoE power.
- Power Consumption Description 460.0 W maximum, 34.5 W idle
- Input Voltage 100 - 127 / 200 - 240 VAC
- External I/O Ports 48 RJ-45 10/100/1000 ports, 4 SFP 1/10GbE ports
- Switching Capacity 176 Gbps
- Throughput 130.95 Mpps, maximum
- Memory and Processor ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
- PoE Capability 370 W Class 4
- Management Features Aruba Instant On Portal, Web browser, SNMP Manager
- Warranty Standard Statement Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration
- Weight (imperial) 9.97 lb
- Weight (metric) 4.52 kg
- Product Dimensions (imperial) 1.73 x 17.42 x 12.7 in
- Product Dimensions (metric) 4.39 x 44.25 x 32.26 cm
More Information
Part No | JL686A |
---|---|
GTIN-/EAN-Code | 0190017356327 |
UPC | 190017356327 |
ASIN | B08BFCQJCB |
Dimensions Length (inch) | 44.25 |
Dimensions Width (inch) | 32.26 |
Dimensions Height (inch) | 5 |
Country of Manufacture | China |
Brand | Aruba Instant On |
Switches | PoE |
Port Count | 29 to 52 |
PoE Power | 301 to 400 |
Memory | 512 MB flash |
Throughput | up to 130.95 Mpps |
Switching Capacity | 176 Gbps |
Network Ports | 48 x 1G |
Uplink Ports | 4 x 1G SFP |
Power Supply | Internal |
