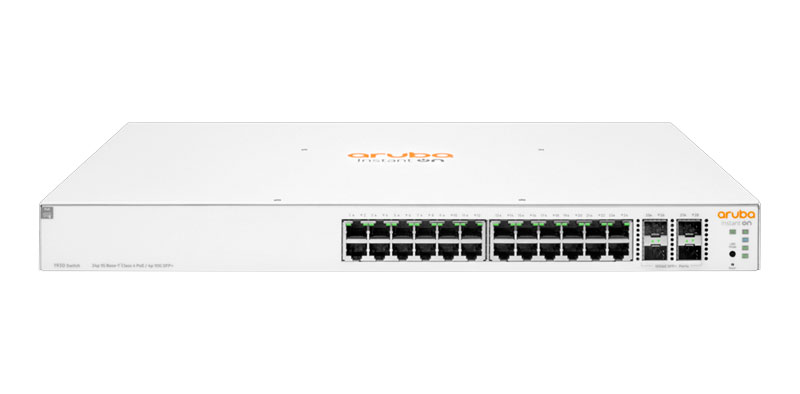

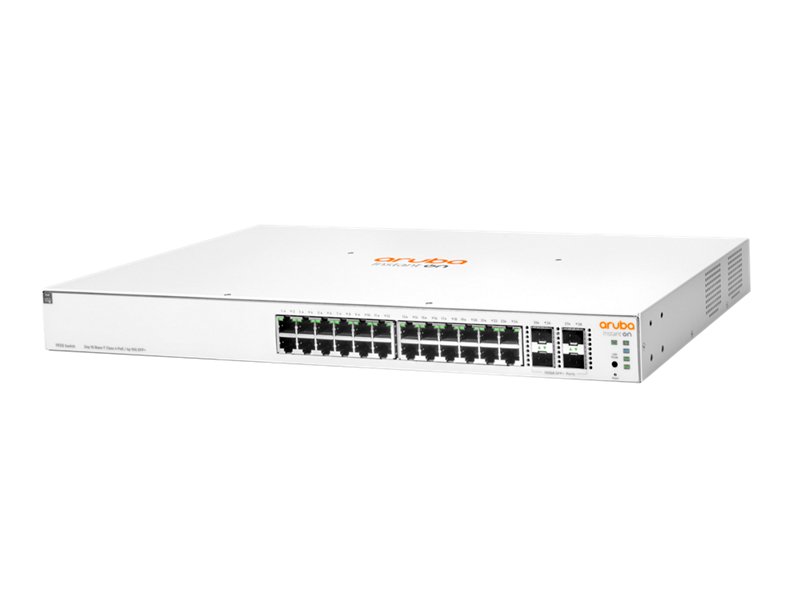

HPE Networking JL684B Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch JL684B

Aruba Instant On
Expected dispatch on : 0October 07 - 08
Part No JL684B

DifferentiatorAdvanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports. Provides 370 W Class 4 PoE power.



Power consumption : 490.0 W maximum, 30.0 W idle

Input voltage : 100 - 127 / 200 - 240 VAC

Ports : 24 RJ-45 10/100/1000 ports, 4 SFP 1/10GbE ports

Switching capacity : 128 Gbps

Throughput : 95.23 Mpps, maximum

Memory and processorARM Cortex-A9 @ 800 MHz
512 MB SDRAM, 256 MB flash | 1.5 MB packet buffer

PoE capability : 370 W Class 4

Management features : HPE Networking Instant On Portal, Web browser, SNMP Manager

Warranty : Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration



AED 1,732.50
Inclusive of 5% VAT

Details


HPE Networking JL684B Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch JL684B

The HPE Networking Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The HPE Networking Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. This cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.

HPE Networking Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch Advanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant-On mobile app or the cloud-based web portal, quickly set up, monitor, and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports. Provides 370 W Class 4 PoE power.

  • Power Consumption Description 439.0 W maximum, 20.9 W idle
  • Input Voltage 100 - 127 / 200 - 240 VAC
  • External I/O Ports 24 RJ-45 10/100/1000 ports, 4 SFP 1/10GbE ports
  • Switching Capacity 128 Gbps
  • Throughput 95.23 Mpps, maximum
  • Memory and Processor ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
  • PoE Capability 370 W Class 4
  • Management Features HPE Networking Instant On Portal, Web browser, SNMP Manager
  • Warranty Standard Statement Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration
  • Weight (imperial) 8.1 lb
  • Weight (metric) 3.67 kg
  • Product Dimensions (imperial) 1.73 x 17.42 x 10.42 in
  • Product Dimensions (metric) 4.39 x 44.25 x 26.47 cm

More Information


More Information
Part No JL684B
GTIN-/EAN-Code 0190017593395
UPC 190017593395
Dimensions Length (inch) 44.25
Dimensions Width (inch) 26.47
Dimensions Height (inch) 5
Country of Manufacture China
Brand Aruba Instant On
