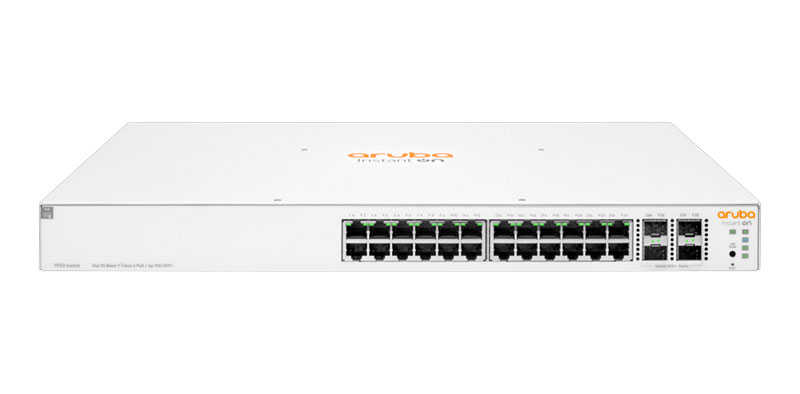

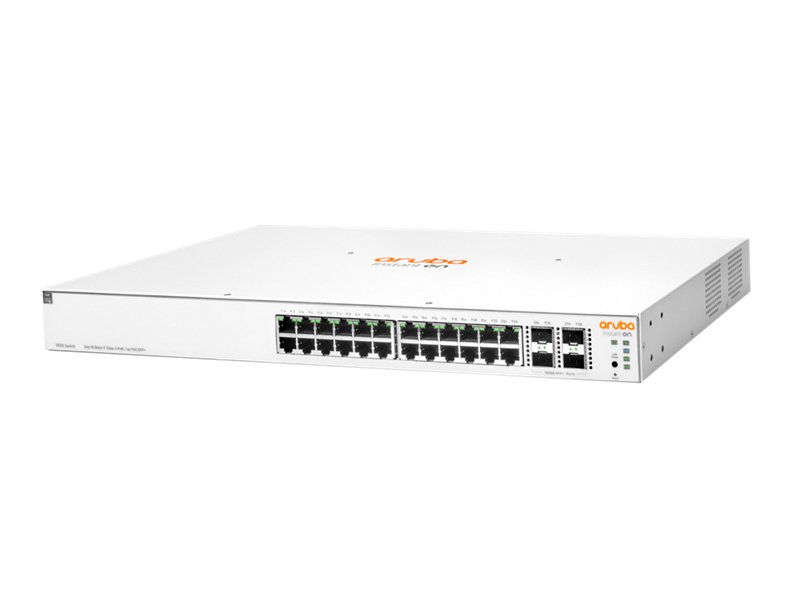

Aruba JL684A Instant On 1930 24G Class4 PoE 4SFP SFP 370W Switch

Aruba Instant On
Expected dispatch on : 0March 29 - 30
Part No JL684A

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch.
This model has 24 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports.
Provides 370 W Class 4 PoE power.

AED 2,992.50
Inclusive of 5% VAT

Details


Aruba JL684A Instant On 1930 24G Class4 PoE 4SFP SFP 370W Switch

The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. This cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch Advanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant-On mobile app or the cloud-based web portal, quickly set up, monitor, and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports. Provides 370 W Class 4 PoE power.

  • Power Consumption Description 439.0 W maximum, 20.9 W idle
  • Input Voltage 100 - 127 / 200 - 240 VAC
  • External I/O Ports 24 RJ-45 10/100/1000 ports, 4 SFP 1/10GbE ports
  • Switching Capacity 128 Gbps
  • Throughput 95.23 Mpps, maximum
  • Memory and Processor ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
  • PoE Capability 370 W Class 4
  • Management Features Aruba Instant On Portal, Web browser, SNMP Manager
  • Warranty Standard Statement Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration
  • Weight (imperial) 8.1 lb
  • Weight (metric) 3.67 kg
  • Product Dimensions (imperial) 1.73 x 17.42 x 10.42 in
  • Product Dimensions (metric) 4.39 x 44.25 x 26.47 cm

More Information


More Information
Part No JL684A
GTIN-/EAN-Code 0190017355887
UPC 190017355887
ASIN B08B4TX979
Dimensions Length (inch) 44.25
Dimensions Width (inch) 26.47
Dimensions Height (inch) 5
Country of Manufacture China
Brand Aruba Instant On
Switches PoE
Port Count 19 to 28
PoE Power 301 to 400
Memory 512 MB flash
Throughput up to 95.23 Mpps
Switching Capacity 128 Gbps
Network Ports 24 x 1G
Uplink Ports 4 x 1G SFP
Power Supply Internal
