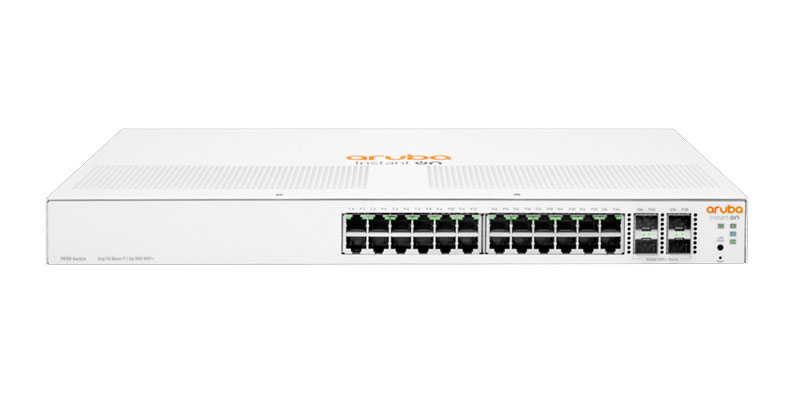

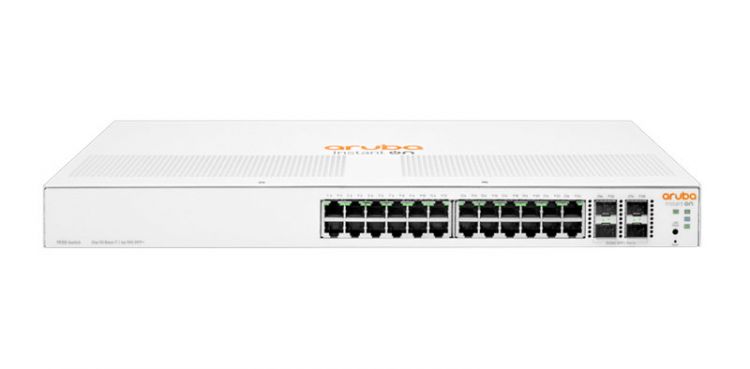

Aruba Instant On 1930 JL682A 24G 4SFP/SFP+ Switch

Product Differentiator (long) Advanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports.

Power Consumption Description 22.6 W maximum, 9.3 W idle

Input Voltage 100 - 127 / 200 - 240 VAC

External I/O Ports 24 RJ-45 10/100/1000 ports, 4 SFP 1/10GbE ports

Switching Capacity 128 Gbps

Throughput 95.23 Mpps, maximum

Memory and Processor ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer

PoE Capability 370 W maximum, depending on model

Management Features Aruba Instant On Portal, Web browser, SNMP Manager
