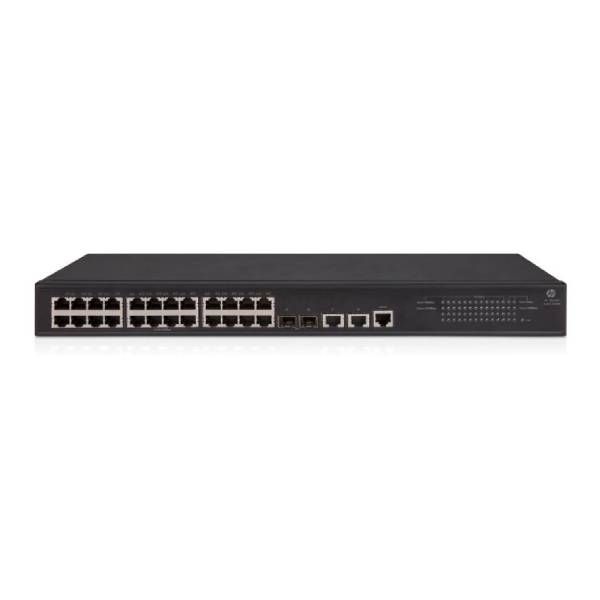

Aruba 1950 24G 2SFP+ 2XGT Switch

Aruba Networks
Expected dispatch on : January 31 - 01
Part No JG960A

The HPE OfficeConnect 1950 Series is a smart Web-managed 10-Gigabit and Gigabit platform for advanced small business networks needing the highest performance now or in the future.

Features:

  • 10G Connectivity for fast network to servers and storage
  • Combination of SFP+ and 10GBASE-T ports supports fiber and cost-effective copper connectivity
  • True stacking allows for redundancy while simplifying administration
  • Customized operation using intuitive Web interface
  • Limited lifetime warranty
Quote

Details


Aruba 1950 24G 2SFP+ 2XGT Switch

The HPE OfficeConnect 1950 Switch Series includes five switches: New to the series is a 16-port 10-Gigabit aggregation switch that has 12 10GBASE-T and 4 SFP+ ports, which is ideal as the core of a high performance workgroup or small business network. Additional series models have Gigabit access ports with 10-Gigabit uplinks, including two standard and two PoE+ models in 24- and 48-port configurations. The access switches each have two 10GBASE-T ports supporting copper- based Category 6A-based cabling, and two 10G SFP+ ports for fiber connectivity. The PoE+ models both have a PoE power budget of 370 W to power up PoE/PoE+ compliant client devices.

The HPE OfficeConnect 1950 Switch Series has an intuitive Web-based interface for simple customization of network operation. It supports true stacking—of two aggregation switches and separately of up to four access switches—with multiple units logically administered as a single entity, simplifying administration while supporting greater network redundancy. Models support both rack mounting and desktop operation. These switches have IPv4 and IPv6 operation, with Layer 2 switching as well as Layer 3 static routing. Other features include: link aggregation to boost link performance; VLANs, Access Control Lists, and 802.1X network login for enhanced security; and three versions of Spanning Tree Protocol (STP) for added network resiliency. HPE OfficeConnect 1950 Switch Series includes a Limited Lifetime Warranty.



Technical Specifications:

General Information
Product NameHPE 1950-24G-2SFP+-2XGT Switch US EN
Manufacturer Part NumberJG960A
Product Series1950
Product Model1950-24G-2SFP+-2XGT
Product TypeEthernet Switch
Interfaces/Ports
Total Number of Network Ports26
ModularNo
Port / Expansion Slot Details24 x Gigabit Ethernet Network

2 x 10 Gigabit Ethernet Network

2 x 10 Gigabit Ethernet Expansion Slot

I/O Expansions
Number of Total Expansion Slots2
Expansion Slot TypeSFP+
Number of SFP+ Slots2
Media & Performance
Media Type SupportedTwisted Pair

Optical Fiber

Ethernet TechnologyGigabit Ethernet

10 Gigabit Ethernet

Network Technology10/100Base-TX

10/100/1000Base-T

10GBase-T

10GBase-X

Network & Communication
Layer Supported3
Power Description
Power SourcePower Supply
Management & Protocols
ManageableYes
Physical Characteristics
Compatible Rack Unit1U
Form FactorRack-mountable
Height1.7"
Width17.2"
Depth6.3"
Warranty
Limited WarrantyLifetime
Miscellaneous
Environmentally FriendlyYes




More Information


More Information
Part No JG960A
GTIN-/EAN-Code 0888182694794
UPC 888182694794
ASIN B01M8K45HE
Country of Manufacture China
Brand Aruba Networks
Switches PoE
Port Count 19 to 28
PoE Power 301 to 400
Throughput up to 95.23 Mpps
Switching Capacity 128 Gbps
Network Ports 24 x 1G
Power Supply Internal
