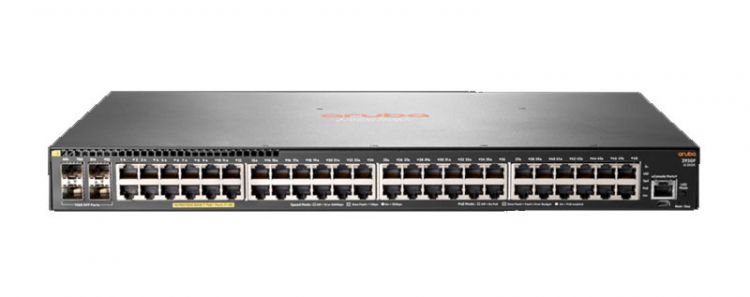

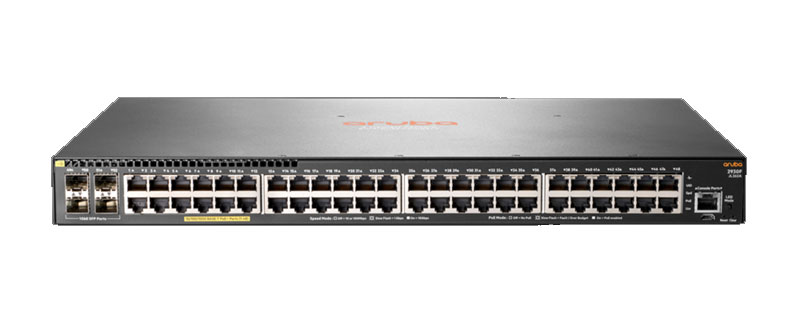

Aruba JL262A 2930F 24G PoE+ 4SFP Switch

Aruba Networks
Expected dispatch on : December 31 - 01
Part No JL262A

Aruba 52-port Gig access switch with 370 Watts PoE+ power. This model has 48x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.

Quote

Details


Aruba JL262A 2930F 24G PoE+ 4SFP Switch

Product Differentiator (long) Popular Aruba 52-port Gig access switch with 370 Watts PoE+ power. This model has 48x 10/100/1000 PoE+ ports and 4x 1000/100 SFP transceiver slots for uplink connectivity. PoE+ is supported with a power budget of 370 Watts.

Power Consumption Description 459 W (maximum)

Heat Dissipation 293 BTU/hr (309.1 kJ/hr)

Input Voltage 100 - 127 / 200 - 240 VAC, rated

External I/O Ports (48) RJ-45 autosensing 10/100/1000 PoE+ ports (4) SFP

Latency 1000 Mb Latency: < 3.8 µs

Switching Capacity 104 Gbps

Throughput up to 77.4 Mpps

Memory and Processor Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress 4 GB eMMC

PoE Capability 370 W PoE+

Management Features Aruba AirWave Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)


More Information


More Information
Part No JL262A
Country of Manufacture China
Brand Aruba Networks
PoE Power 201 to 300
Throughput up to 77.4 Mpps
Switching Capacity 104 Gbps
