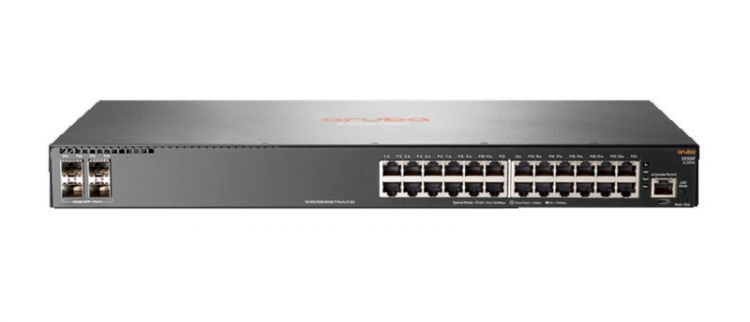

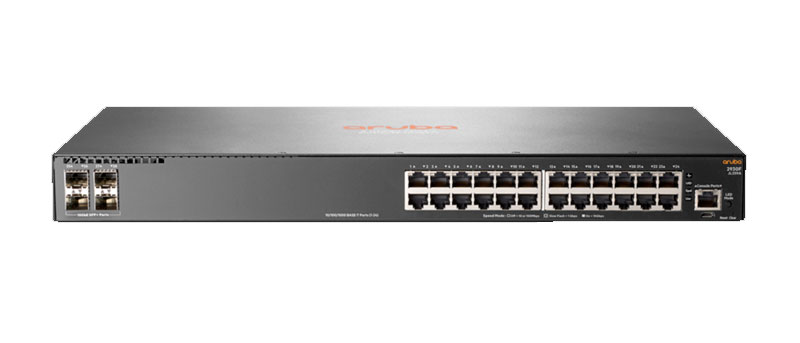

Aruba JL259A 2930F 24G 4SFP Switch

Aruba Networks
Availability: Out of stock

Delivery : Allocation
Part No JL259A

Aruba 28-port Gig access switch. This model has 24x 10/100/1000 ports and 4x 1000/100 SFP transceiver slots for uplink connectivity.

Details


Aruba JL259A 2930F 24G 4SFP Switch

Product Differentiator (long) Popular Aruba 28-port Gig access switch. This model has 24x 10/100/1000 ports and 4x 1000/100 SFP transceiver slots for uplink connectivity.

Power Consumption Description 29.3 W (maximum)

Heat Dissipation 100 BTU/hr (105.5 kJ/hr)

Input Voltage 100 - 127 / 200 - 240 VAC, rated

External I/O Ports (24) RJ-45 autosensing 10/100/1000 ports (4) SFP

Latency 1000 Mb Latency: < 3.8 µs

Switching Capacity 56 Gbps

Throughput up to 41.7 Mpps

Memory and Processor Dual Core ARM Cortex A9 @ 1016 MHz 1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress 4 GB eMMC.

Management Features Aruba AirWave Central Network Management IMC - Intelligent Management Center Command-line interface Web browser Configuration menu SNMP manager Telnet RMON1 FTP Out-of-band management (serial RS-232C or micro USB)


More Information


More Information
Part No JL259A
Country of Manufacture China
Brand Aruba Networks
PoE Power 201 to 300
Throughput up to 41.7 Mpps
Switching Capacity 56 Gbps
