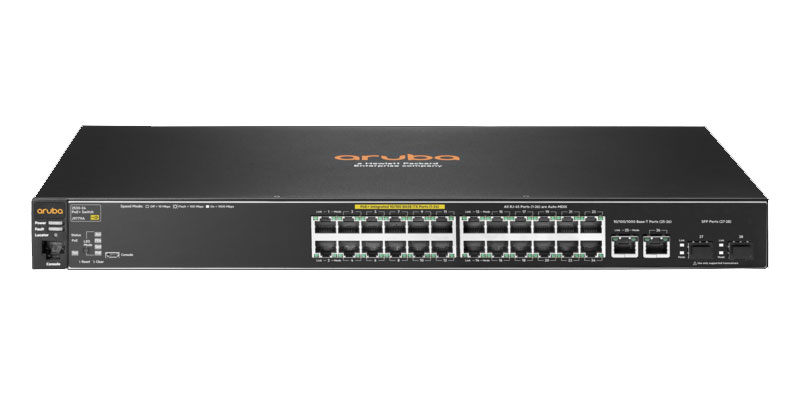

Aruba J9779A 2530 24 PoE+ Switch

Product Differentiator (long) 24-port fully managed Fast Ethernet PoE+ switch with Gigabit uplinks. This model has 24x 10/100 PoE+ ports with a power budget of 195W. Additionally the switch has two 10/100/1000 ports and two dedicated Gigabit SFP ports.

Power Consumption Description 237 W (maximum)

Heat Dissipation 99 BTU/hr (104.45 kJ/hr)

Input Voltage 100 - 127 / 200 - 240 VAC, rated

External I/O Ports (24) RJ-45 autosensing 10/100 PoE+ ports (2) autosensing 10/100/1000 ports (2) fixed Gigabit Ethernet SFP ports

Latency 100 Mb Latency: < 1.7 µs 1000 Mb Latency: < 1.1 µs

Switching Capacity 12.8 Gbps

Stacking Capabilities Virtual 16 switches

Throughput up to 9.5 Mpps

Memory and Processor ARM9E @ 800 MHz 128 MB flash Packet buffer size: 1.5 MB dynamically allocated 256 MB DDR3 DIMM

PoE Capability 195 W

Management Features Aruba Central and Aruba AirWave Network Management IMC—Intelligent Management Center command-line interface Web browser configuration menu out-of-band management (serial RS-232C or Micro USB) IEEE 802.3 Ethernet MIB Repeater MIB Ethernet Interface MIB AirWave Network Management

Detailed Product Description Aruba 2530 switch with 24 power-over-Ethernet-plus ports
