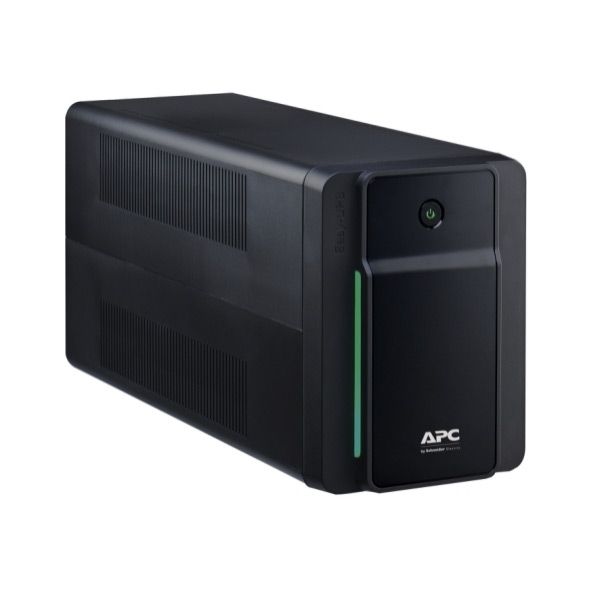

APC Easy UPS BVX 1200VA, 230V, AVR, IEC Sockets BVX1200LI

APC by Schneider Electric
Expected dispatch on : 0April 24 - 25
Part No BVX1200LI

Battery type : Lead-acid battery
Typical recharge time : 8hour(s)
Nominal Battery Voltage : 12 V
Expected Battery Life (years) : 3 - 5
Battery Volt-Amp-Hour Capacity : 108

Quote

Details


APC Easy UPS BVX 1200VA, 230V, AVR, IEC Sockets BVX1200LI

Output
Max Configurable Power (Watts) : 650 Watts / 1.2kVA
Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains
Topology : Line interactive
Waveform type : Stepped approximation to a sinewave
Transfer Time : 6 ms typical : 10 ms maximum

Input
Input frequency : 50/60 Hz +/- 5 Hz Auto-sensing
Input voltage range for main operations : 140 - 300 (230 V) ACV
Number of Power Cords : 1
Input Power Factor at Full Load : 0.51

Communications & Management
Control panel : LED Status display with on line : on battery
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering
Surge energy rating : 273Joules

Physical
Maximum Height : 190MM, 19.0CM
Maximum Width : 140MM, 14.0CM
Maximum Depth : 390MM, 39.0CM
Net Weight : 7.5KG
Color : Black
SCC Codes : 10731304404504

Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 3000meters
Storage Temperature : -15 - 40 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 3000meters
Audible noise at 1 meter from surface of unit : 40.0dBA
Protection Class : IP20




More Information


More Information
Part No BVX1200LI
Dimensions Length (inch) 19.48
Dimensions Width (inch) 9.25
Dimensions Height (inch) 11.69
Country of Manufacture China
Brand APC by Schneider Electric
Battery Type Lead-acid
Battery Life 3 - 5
