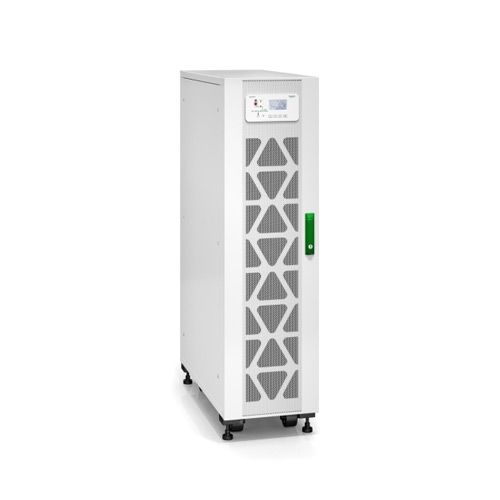

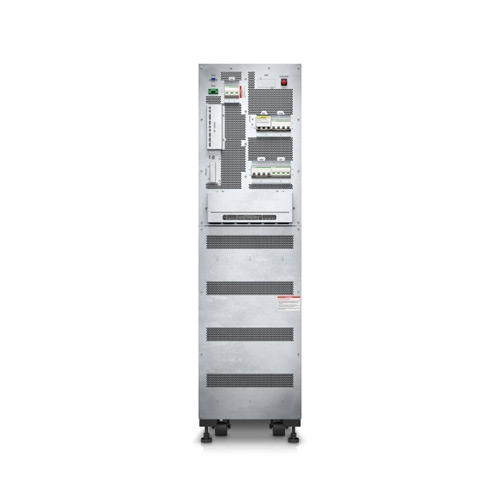

APC Easy UPS 3S 10kVA 208V 3:3 15 min E3SUPS10KFB1

APC by Schneider Electric
Expected dispatch on : 0March 30 - 31
Part No E3SUPS10KFB1

Battery type : VRLA
Included Battery Modules : 1
Battery Slots Empty : 2
Replacement battery cartridge note : UPS weight does not include battery weight.
End of Discharge Battery Voltage : +/- 96 V
Maximum Available Short Circuit Current : 10kAmps

Quote

Details


APC Easy UPS 3S 10kVA 208V 3:3 15 min E3SUPS10KFB1

Output
Max Configurable Power (Watts) : 10.0kWatts / 10.0kVA
Output Frequency (sync to mains) : 50 Hz Sync to mains, 60 Hz Sync to mains
Topology : Double conversion online
Overload Operation : 10 minutes at 125% and 60 seconds at 150%
Output Voltage THD : < 2% for 0 to 100% linear load and < 6% for full non-linear load

Input
Input frequency : 45 - 65 Hz
Input voltage range for main operations : 180 - 253V
Input Total Harmonic Distortion : Less than 4 % for full load
Other Input Voltages : 200, 220
Input Power Factor at Full Load : 0.99

Communications & Management
Interface Port(s) : E3S_Parallel, E3S_TempSensor

Physical
Maximum Height : 770MM, 77.0CM
Maximum Width : 250MM, 25.0CM
Maximum Depth : 800MM, 80.0CM
Net Weight : 58.0KG
Color : White

Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 1015.9meters
Storage Temperature : -15 - 40 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 15240meters
Audible noise at 1 meter from surface of unit : 63.0dBA
Online thermal dissipation : 920.0BTU/hr
Protection Class : IP20


More Information


More Information
Part No E3SUPS10KFB1
Dimensions Length (inch) 38.66
Dimensions Width (inch) 15.74
Dimensions Height (inch) 39.96
Country of Manufacture China
Brand APC by Schneider Electric
