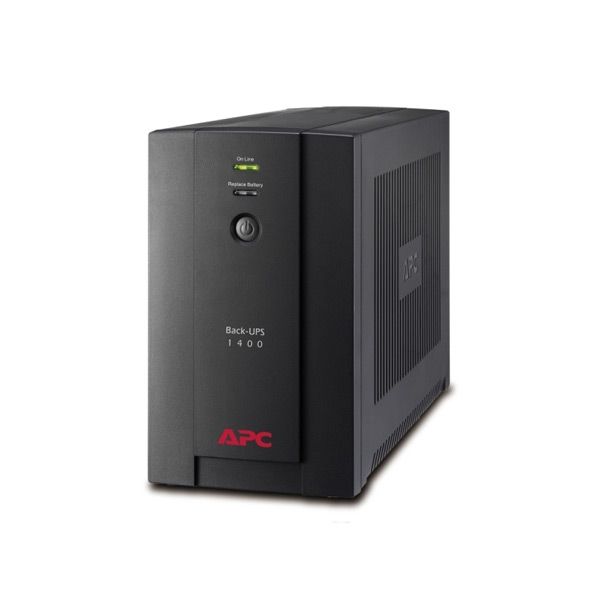

APC Back-UPS 1400VA, 230V, AVR, IEC Sockets BX1400UI
November 06 - 07
Battery type : Lead-acid battery
Typical recharge time : 8hour(s)
Expected Battery Life (years) : 2 - 5
Battery Charge Power (Watts) : 21 Watts
Battery Volt-Amp-Hour Capacity : 165
Details
APC Back-UPS 1400VA, 230V, AVR, IEC Sockets BX1400UI
Output
Max Configurable Power (Watts) : 700 Watts / 1.4kVA
Output Frequency (sync to mains) : 50/60 Hz +/- 1 Hz Sync to mains, 50/60 Hz +/- 1 Hz Unsynchronised
Topology : Line interactive
Waveform type : Stepped approximation to a sinewave
Transfer Time : 8 ms typical : 10 ms maximum
Input
Input frequency : 50/60 Hz +/- 3 Hz Auto-sensing
Input voltage range for main operations : 150 - 280 V
Number of Power Cords : 1
Type of Input Protection Required : 3-pole circuit breaker
Input Power Factor at Full Load : 0.5
Communications & Management
Interface Port(s) : USB
Control panel : LED status display with on line : on battery : replace battery and overload indicators
Audible Alarm : Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Surge Protection and Filtering
Surge energy rating : 273Joules

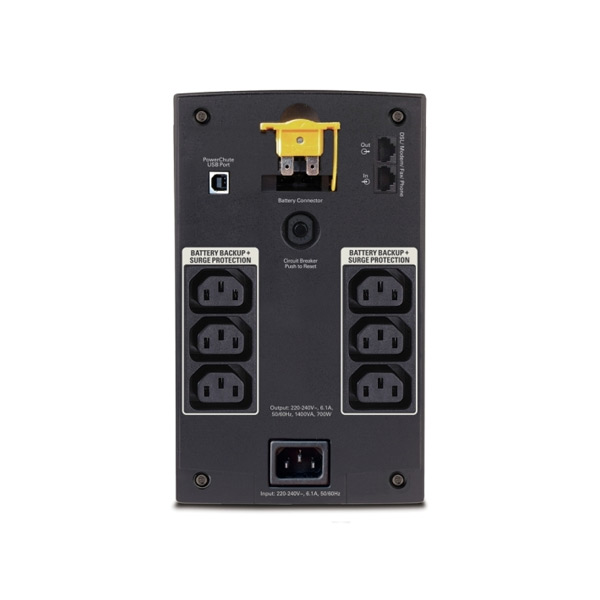

Data Line Protection : RJ11 modem/fax protection
Physical
Maximum Height : 215MM, 21.5CM
Maximum Width : 130MM, 13.0CM
Maximum Depth : 336MM, 33.6CM
Net Weight : 12.0KG
Shipping weight : 12.94KG
Shipping Height : 295MM, 29.5CM
Shipping Width : 245MM, 24.5CM
Shipping Depth : 440MM, 44.0CM
Color : Black
SCC Codes : 10731304315954
Environmental
Operating Temperature : 0 - 40 °C
Operating Relative Humidity : 0 - 95 (Non-condensing) %
Operating Elevation : 0 - 3048meters
Storage Temperature : -15 - 40 °C
Storage Relative Humidity : 0 - 95 (Non-condensing) %
Storage Elevation : 0 - 9144meters
Audible noise at 1 meter from surface of unit : 45.0dBA
More Information
Part No | BX1400UI |
---|---|
Country of Manufacture | China |
Brand | APC by Schneider Electric |
Battery Type | Lead-acid |
Battery Life | 3 - 5 |
