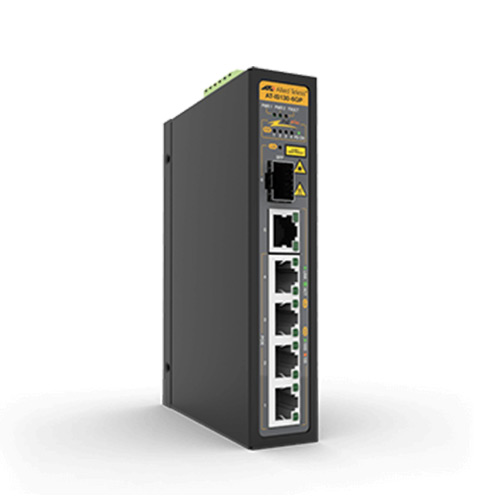

Alliedtelesis IS130-6GP Industrial Ethernet Gigabit Unmanaged Layer 2 Switch

Allied Telesis
Rating:
100%
Expected dispatch on : 0March 29 - 30
Part No IS130-6GP

Full Gigabit, wirespeed ports
IEEE 802.3at PoE+ sourcing (30W)
90W PoE power budget
Wide -40 to +75°C operating temperature range
Dual power inputs with reverse polarity and over-current protection
Alarm output
DIN rail and wall mount
IP-30 (metal case)

Quote

Details


Alliedtelesis IS130-6GP Industrial Ethernet Gigabit Unmanaged Layer 2 Switch

Industrial Unmanaged Layer 2 Switches
Allied Telesis ruggedized IS130 industrial unmanaged switches provide enduring performance in harsh environments, such as those found in outdoor IoT and industrial applications.

Power over Ethernet
The IS130-6GP is a Power over Ethernet Power Sourcing Equipment (PoE PSE) device, which is compliant with IEEE802.3af and IEEE802.3at standards.
Each port supplies either 15.40W PoE with 12.95W available to the powered device, or 30.00W PoE+ with 25.50W available to the powered device.
PoE sourcing is the ideal solution to support many devices, including:
Pan, Tilt and Zoom (PTZ) cameras with heating/cooling fans for outdoor applications
Enhanced infrared lighting
Lighting controllers
LED lighting fixtures
Remote Point of Sale (POS) kiosks

Performance
Up to 2K MAC addresses
Packet buffer memory: 128KB
Supports 9,216 bytes jumbo frames

Other Interfaces
Type: Alarm output (1A @ 24Vdc)
Port no.: 1
Connector: 2-pin Terminal Block(2)
Type: Power Input
Port no.: 2
Connector: 2-pin Terminal Block(2)

Mechanical
EN 50022, EN 60715 Standardized mounting on rails

Environmental Specifications
Operating temperature range: -40°C to 75°C (-40°F to 167°F)
Storage temperature range: -40°C to 85°C (-40°F to 185°F)
Operating relative humidity range: 10% to 95%RH non-condensing
Storage relative humidity range: 10% to 95%RH non-condensing
Operating altitude 3,000m maximum (9,843 ft)

Environmental Compliance
RoHS
China RoHS
WEEE

Ethernet
IEEE 802.2 Logical Link Control (LLC)
IEEE 802.3 Ethernet
IEEE 802.3ab 1000BASE-T
IEEE 802.3af Power over Ethernet (PoE)
IEEE 802.3at Power over Ethernet plus (PoE+)
IEEE 802.3u 100BASE-X
IEEE 802.3x Flow control (FDX)
IEEE 802.3z 1000BASE-X


More Information


More Information
Part No IS130-6GP
Country of Manufacture China
Brand Allied Telesis
