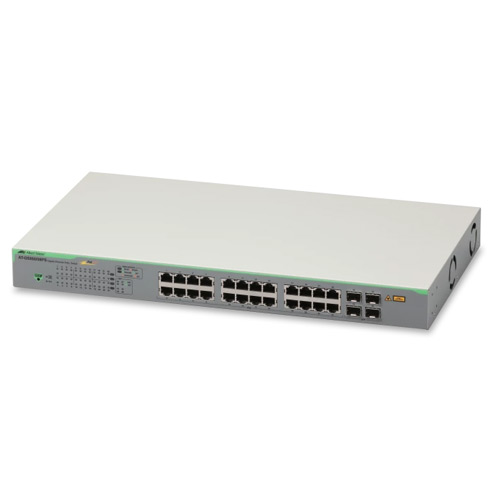

Allied Telesis GS950/28PS WebSmart Gigabit Ethernet Switch

WebSmart Gigabit Ethernet Switch
The Allied Telesis GS950/28PS Green WebSmart Switch confirms Allied Telesis' commitment to green processes and products. It is designed to minimize power consumption by using a high-efficiency power supply and a low-power chipset.

The Allied Telesis GS950/28PS Gigabit Ethernet WebSmart Switch features 24 10/100/1000T ports and four SFP ports that deliver up to 30 watts per port (PoE+) to power video surveillance and security cameras, wireless access points, IP phones, and to support other PoE powered devices. The PoE option eliminates the need to rewire the power supply and minimizes the clutter of power supplies and adapters in awkward places. Thanks to its compact size, the GS950/28PS is the ideal cost-effective solution for small businesses, classrooms, larger retail stores

Power and Noise Characteristics
No PoE Load:
Max Power Consumption (W) : 28.6
Max Heat Dissipation (BTU/h) : 97.59
Noise (dBA) : 58.5dB >25C, 55.2dB <25C

Full PoE+ Load:
Max Power Consumption (W) : 238
Max Heat Dissipation (BTU/h) : 812.09
Noise (dBA) : 58.5dB >25C, 55.2dB <25C

Power over Ethernet
PoE Budget Power (W) : 185
PoE (7.5W) : 24
PoE (15.4W) : 12
PoE+ (30W) : 4
