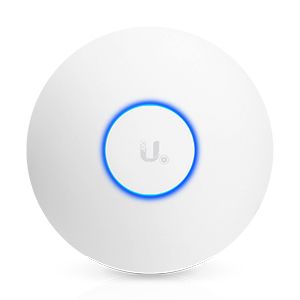

UniFi Long-Range Access Point UAP-AC-LR

Ubiquiti
Availability: Out of stock

Delivery : Allocation
Part No UAP-AC-LR

Extend your Wi-Fi network with the UniFi® ac LR Access Point, part of the Ubiquiti Networks® UniFi Enterprise WiFi System. The UniFi ac LR Access Point is an indoor, long-range 802.11ac dual-radio access point, capable of speeds up to 1317 Mbps with a range of up to 183 meters.

Features:

  • Simultaneous Dual-Band Operation
  • 5 GHz Band with Speeds of up to 867 Mbps
  • 2.4 GHz Band with Speeds of up to 450 Mbps
  • Range up to 183 meters (600 feet)
Quote

Details


UniFi Long-Range Access Point UAP-AC-LR

Works with UniFi Network Controller

  • Manage your networks from a single interface.
  • Enjoy intuitive configuration options, as well as robust device control and monitoring.
  • Upgrade device firmware remotely.
  • Easily manage network users and guests.
  • Personalize the design, architecture, and privacy of guest hotspots.

Product Specifications:

Dimensions175.7 x 175.7 x 43.2 mm (6.92 x 6.92 x 1.70")
Weight240 g (8.5 oz), With Mounting Kits 315 g (11.1 oz)
Networking Interface(1) 10/100/1000 Ethernet Port
ButtonsReset
Power Method802.3af/A PoE
24V Passive PoE (Pairs 4, 5+; 7, 8 Return)
Power Supply24V, 0.5A Gigabit PoE Adapter
Power SaveSupported
Maximum Power Consumption6.5W
Maximum TX Power2.4 GHz: 24 dBm
5 GHz: 22 dBm
Antennas(1) Dual-Band Antenna, Tri-Polarity, 2.4 GHz: 3 dBi, 5 GHz: 3 dBi
Wi-Fi Standards802.11 a/b/g/n/r/k/v/ac
Wireless SecurityWEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSIDUp to 8 per Radio
MountingWall/Ceiling (Kits Included)
Operating Temperature-10 to 70° C (14 to 158° F)
Operating Humidity5 to 95% Noncondensing
CertificationsCE, FCC, IC

More Information


More Information
Part No UAP-AC-LR
Dimensions Length (inch) 175.7
Dimensions Width (inch) 175.7
Dimensions Height (inch) 43.2
Country of Manufacture China
Brand Ubiquiti
Data Transfer Rate 500 Mbps to 1 Gbps
Application Indoor
Antennas Internal
Ports 1
